90C2

90C2-LEFT SIDE IMPACT SENSOR 2 INCORRECT SENSOR





For a complete wiring diagram Consult Diagrams/Electrical.

Theory of Operation

The Occupant Restraint Controller (ORC) supplies power to and communicates continuously with each impact sensor via each sensor's signal circuit. The power supply also enables each sensor's self-diagnostic capabilities. When powered up, the ORC establishes communication with each sensor by sending and receiving acknowledgement messages. The repair of this fault condition centers on confirming sensor type and module programming.

- When Monitored:
When powered, the Occupant Restraint Controller (ORC) supplies power to and communicates continuously with each impact sensor via each sensor's signal circuit.

- Set Condition:
The ORC will set this DTC if the Left Sensor 2 type does not match the ORC pre-programmed Left Sensor 2 type.





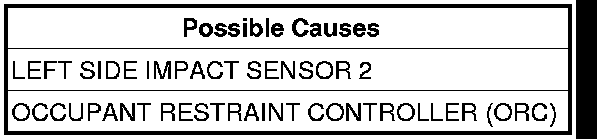

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding.

Diagnostic Test

1. VERIFY ACTIVE OR STORED DTC
NOTE: Ensure that the battery is fully charged.

Turn the ignition on.
With the scan tool, read the active ORC DTC.
Does the scan tool display active: 90C2-LEFT SIDE IMPACT SENSOR 2 INCORRECT SENSOR?

Yes

- Go To 2

No

- Perform *RESTRAINTS SYSTEM INTERMITTENT TEST. .

2. REPLACE THE LEFT SIDE IMPACT SENSOR 2
WARNING: To avoid serious or fatal injury, turn the ignition off, disconnect the battery and wait two minutes before proceeding.

Replace the Left Side Impact Sensor 2.
Remove any special tools or jumper wires and reconnect all previously disconnected components - except the Battery.

WARNING: To avoid serious or fatal injury, turn the ignition on, then reconnect the battery.

With the scan tool, erase all DTC in all Restraint System Modules.
Turn the Ignition off, wait 15 seconds, then turn the Ignition on.
Wait one minute before proceeding.
With the scan tool, read active ORC DTC.
Does the scan tool display: 90C2-LEFT SIDE IMPACT SENSOR 2 INCORRECT SENSOR?

Yes

WARNING: If the Occupant Restraint Controller (ORC) is dropped at any time, it must be replaced. Failure to take the proper precautions could result in accidental airbag deployment and serious or fatal injury.

WARNING: To avoid serious or fatal injury, turn the ignition off, disconnect the battery and wait two minutes before proceeding.

- Replace the ORC.
- Perform *RESTRAINTS SYSTEM VERIFICATION TEST. Verification Tests

No

- Repair complete.
- Perform *RESTRAINTS SYSTEM VERIFICATION TEST. Verification Tests
