B210E

B210E-BATTERY VOLTAGE HIGH - PSDM

For a complete wiring diagram Consult Diagrams/Electrical

- When Monitored:
At all times.

- Set Condition:

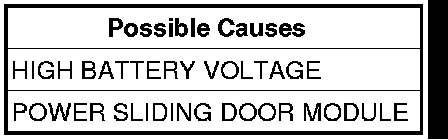

When the Power Sliding Door Module detects input voltage above 16.5 volts for more than 15 seconds, this code will set.





Diagnostic Test

1. CHECK ENGINE DTC's
NOTE: Ensure the battery is fully charged and serviceable before proceeding.

With the scan tool, read ENGINE DTC's
Are there any ENGINE DTC's present?

No

- Go To 2

Yes

- Diagnose and repair the DTC(s).

2. TEST FOR INTERMITTENT CONDITION
With the scan tool, record and erase DTC's
Start the engine and run for two minutes.
With the scan tool, read DTC's.
Does the scan tool display B210E-BATTERY VOLTAGE HIGH?

Yes

- Replace the Power Sliding Door Module.
- Perform BODY VERIFICATION TEST - VER 1. Verification Tests.

No

- The conditions that caused this code to set are not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
- Perform BODY VERIFICATION TEST - VER 1. Verification Tests.
