B19AD

B19AD-RIGHT POWER SLIDING DOOR CONTROL CIRCUIT 1 HIGH





For a complete wiring diagram Consult Diagrams/Electrical

- When Monitored:
Anytime the Right Power Sliding Door is in a power open or close operation.

- Set Condition:
This code will set when the Right Power Sliding Door module senses voltage above 9.0 volts on the Right Power Sliding Door Motor Open Driver circuit for a specified amount of time.





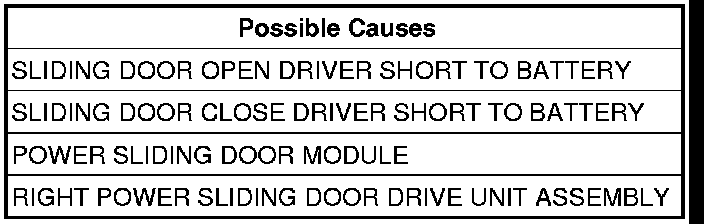

Diagnostic Test

1. CHECK FOR DTCS
With the scan tool, record DTC's and any power sliding door inhibitors.
Erase the DTCs.
Turn the ignition off, wait 10 seconds, then turn the ignition on.
Attempt to operate the Right Power Sliding Door
With the scan tool, read DTCs.
Does the scan tool display this DTC?

Yes

- Go To 2

No

- Using the wiring diagrams as a guide, inspect the wiring and connectors for an intermittent condition.
- Perform BODY VERIFICATION TEST - VER 1. Verification Tests.

2. CHECK THE SLIDING DOOR OPEN DRIVER CIRCUIT




NOTE: At this time it will be necessary to remove the Power Sliding Door Drive Unit Assembly from the vehicle.

Turn the ignition off.
Remove the Power Sliding Door Drive Unit Assembly from the vehicle.
Remove the Power Sliding Door Module from the track assembly.
Ensure the PSD Module connector is connected to the module.
Re-connect the C382 Right Body 4 way harness connector.
Turn the ignition on.
Measure the voltage between the Door Motor Clutch Return circuit and the Sliding Door Open Driver circuit in the PSD Module C2 (component side) connection.
Is the voltage above 8.0 volts on the Driver circuit?

Yes

- Replace the Power Sliding Door Module.
- Perform BODY VERIFICATION TEST - VER 1. Verification Tests.

No

- Go To 3

3. CHECK THE SLIDING DOOR CLOSE DRIVER CIRCUIT




Measure the voltage between the Door Motor Clutch Return circuit and the Sliding Door Close Driver circuit in the PSD Module C2 (component side) connection
Is the voltage above 8.0 volts on the Driver circuit?

Yes

- Replace the Power Sliding Door Module.
- Perform BODY VERIFICATION TEST - VER 1. Verification Tests.

No

- Go To 4

4. CHECK THE SLIDING DOOR OPEN AND CLOSE CIRCUITS




Connect a 12-volt test light between the Sliding Door Open Driver circuit and the Sliding Door Close Driver circuit in the PSD Module C2 (component side) connection.
With the scan tool, actuate the Drive Motor Control while observing the test light.
Does the test light illuminate brightly each time the motor is actuated in both directions?

No

- Replace the Power Sliding Door Module.
- Perform BODY VERIFICATION TEST - VER 1. Verification Tests.

Yes

- Replace the Power Sliding Door Drive Unit.
- Perform BODY VERIFICATION TEST - VER 1. Verification Tests.
