B198F-LEFT POWER SLIDING DOOR SENSOR SUPPLY CIRCUIT HIGH





For a complete wiring diagram Consult Diagrams/Electrical

- When Monitored:
Whenever the Left Power Sliding Door Motor/Module is awake.

- Set Condition:
The Left Power Sliding Door Motor/Module has detected the Left Power Sliding Door Motor/Module Sensor supply circuit voltage is above 8.0 volts for over 500 ms.





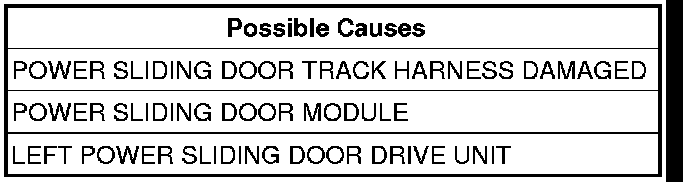

Diagnostic Test

1. CHECK FOR DTCS
With the scan tool, record DTC's and any power sliding door inhibitors.
Erase the DTCs.
Turn the ignition off, wait 10 seconds, then turn the ignition on.
Attempt to operate the Left Power Sliding Door
With the scan tool, read DTCs.
Does the scan tool display this DTC?

Yes

- Go To 2

No

- Using the wiring diagrams as a guide, inspect the wiring and connectors for an intermittent condition.
- Perform BODY VERIFICATION TEST - VER 1. Verification Tests.

2. CHECK THE LEFT POWER SLIDING DOOR
Examine the Left Power Sliding Door for proper alignment, worn or binding rollers and hinges, loose/damaged weatherstrip, and track assembly for wear or anything that would cause an obstruction to proper operation.
Manually open and close the Power Sliding Door on a known good vehicle and notice the effort needed to open and close.
Compare the effort needed to open and close the door on the disabled vehicle.
Especially notice the effort needed to unlatch and close the Left Power Sliding Door.
Does it take more effort to operate the door than it should?

Yes

- Refer to Service information for the related procedure.
- Perform BODY VERIFICATION TEST - VER 1. Verification Tests.

No

- Go To 3

3. CHECK THE LEFT POWER SLIDING DOOR TRACK HARNESS




NOTE: At this time it will be necessary to remove the Power Sliding Door Drive Unit Assembly from the vehicle.

Turn the ignition off.
Remove the Power Sliding Door Drive Unit Assembly from the vehicle.
Set the drive unit on the vehicle floor.
Remove the Power Sliding Door Module from the track.
Disconnect the Power Sliding Door Module connector
Re-connect the C383 Left Body 4 way harness connector.
Turn the ignition on.
Using a 12-volt test light, connect one end to the (A959) Fused B(+) circuit and the other to the (Z908) Ground in the PSD Module connector.

NOTE: The test light must illuminate brightly. Compare the brightness to that of a direct connection to the battery.

Does the test tight illuminate brightly?

No

- Repair or replace the Track harness as necessary. If you have to order a new harness, be sure to specify if it is for the Driver or Passenger side of the vehicle.
- Perform BODY VERIFICATION TEST - VER 1. Verification Tests.

Yes

- Go To 4

4. CHECK THE DOOR POSITION SENSOR SUPPLY CIRCUIT




Re-connect the PSD Module connector to the module.
Connect a voltmeter between the Door Position Sensor Supply circuit and the Door Position Sensor Return circuit in the PSDM C2 (component side).
Is the voltage above 5.5 volts?

No

- Replace the Power Sliding Door Drive Unit.
- Perform BODY VERIFICATION TEST - VER 1. Verification Tests.

Yes

- Replace the Power Sliding Door Module.
- Perform BODY VERIFICATION TEST - VER 1. Verification Tests.
