B193F

B193F-RIGHT POWER SLIDING DOOR SWITCH CIRCUIT LOW - TIPM





For a complete wiring diagram Consult Diagrams/Electrical

- When Monitored:
Whenever the Totally Integrated Power Module (TIPM) is awake.

- Set Condition:
When the TIPM senses low voltage on the (G42) Right Sliding Door Pillar MUX circuit for longer than 10 seconds, this code will set.





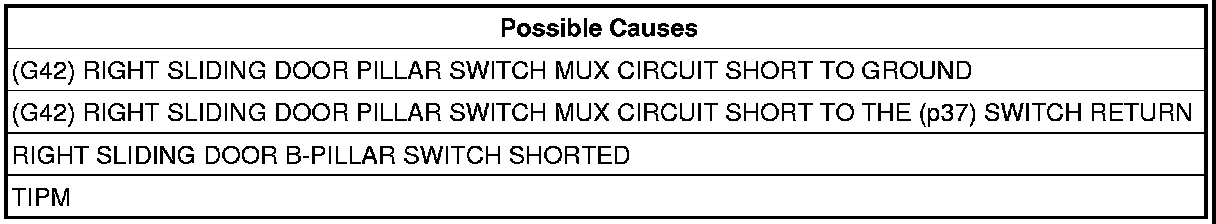

Diagnostic Test

1. DTC PRESENT
With the scan tool, record DTCs.
Erase DTCs.
Turn the ignition off, wait 10 seconds, then turn the ignition on.
Operate the Right Power Sliding Door several times from the Right Power Sliding Door B-Pillar switch.
With the scan tool, read DTCs.
Does the scan tool display this DTC as active?

Yes

- Go To 2

No

- Using the wiring diagram/schematic as a guide, inspect the wiring and connectors for an intermittent condition.
- Perform BODY VERIFICATION TEST - VER 1. Verification Tests.

Diagnostic Test

2. CHECK THE RIGHT POWER SLIDING DOOR B-PILLAR SWITCH FOR A SHORT TO GROUND

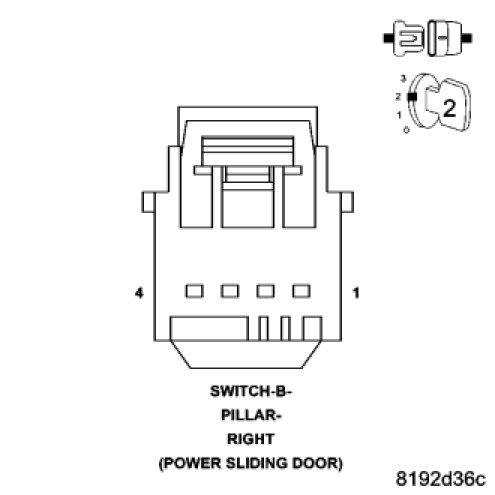

Disconnect the Right Power Sliding Door B-Pillar Switch 4 way harness connector.
Erase DTCs.
Turn the ignition off, wait 10 seconds, then turn the ignition on.
With the scan tool, read DTCs.
Does the scan tool display this DTC as active?

Yes

- Go To 3

No

- Replace the Right Power Sliding Door B-Pillar Switch assembly.
- Perform BODY VERIFICATION TEST - VER 1. Verification Tests.

3. CHECK THE (G42) RIGHT SLIDING DOOR PILLAR SWITCH MUX CIRCUIT FOR A SHORT TO GROUND




Turn the ignition off.
Disconnect the TIPM C7 harness connector.
Measure the resistance between ground and the (G42) Right Sliding Door Pillar Switch MUX circuit.
Is the resistance below 10,000 ohms?

Yes

- Repair the (G42) Right Sliding Door Pillar Switch MUX circuit for a short to ground.
- Perform BODY VERIFICATION TEST - VER 1. Verification Tests.

No

- Go To 4

4. CHECK THE (G42) RIGHT SLIDING DOOR PILLAR SWITCH MUX CIRCUIT FOR A SHORT TO THE (P37) SWITCH RETURN

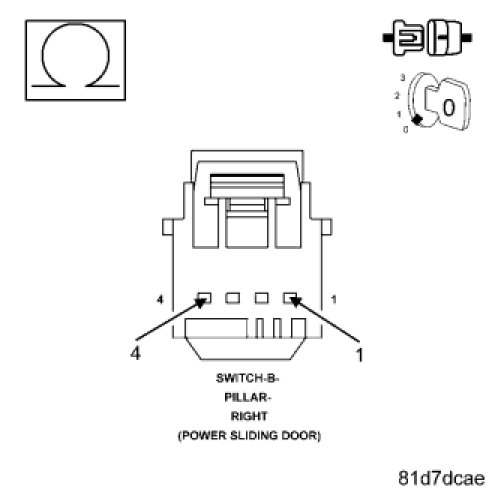

Measure the resistance between the (P37) Switch Return circuit and the (G42) Right Sliding Door Pillar Switch MUX circuit in the Switch connector.
Is the resistance below 10,000 ohms?

Yes

- Repair the (G42) Right Sliding Door Pillar Switch MUX circuit for a short to the (P37) Switch Return circuit.
- Perform BODY VERIFICATION TEST - VER 1. Verification Tests.

No

- Replace the TIPM.
- Perform BODY VERIFICATION TEST - VER 1. Verification Tests.
