Headlamp Washer Motor: Diagrams

Component ID: 280

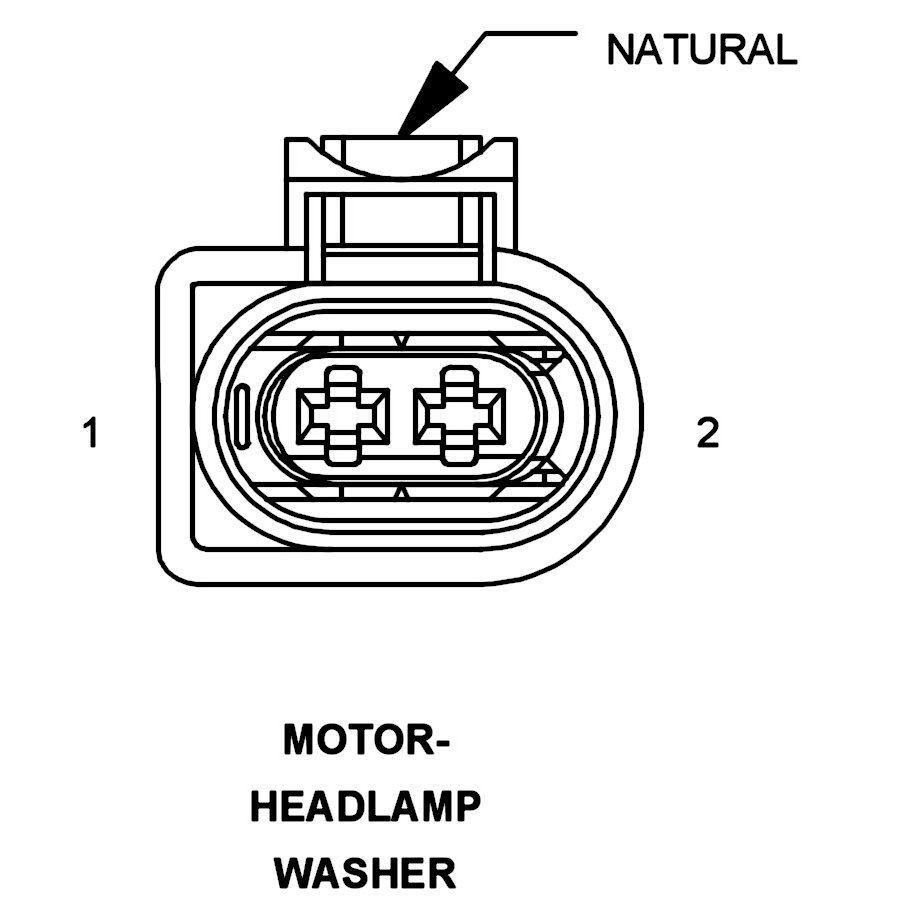

Component : MOTOR-HEADLAMP WASHER

Connector:
Name : MOTOR-HEADLAMP WASHER
Color : NATURAL
# of pins : 2




Pin Description Circuit
1 - 2294 12VT/DB
2 GROUND 2293 12BR
