Removal






REMOVAL




1. Remove the rear window wiper.
2. Remove the cover (3) from right rear end door.
3. Disconnect the electrical connector from rear window heater.

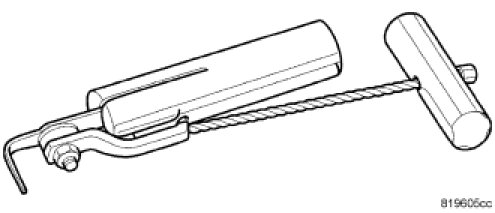

4. Using a windshield removal tool with a cable pull handle, or equivalent, separate the glass adhesive from the inside of the vehicle.
5. Remove the glass and vacuum off any glass splinters and contamination.
