Motor-Window-Driver

Component ID: 286

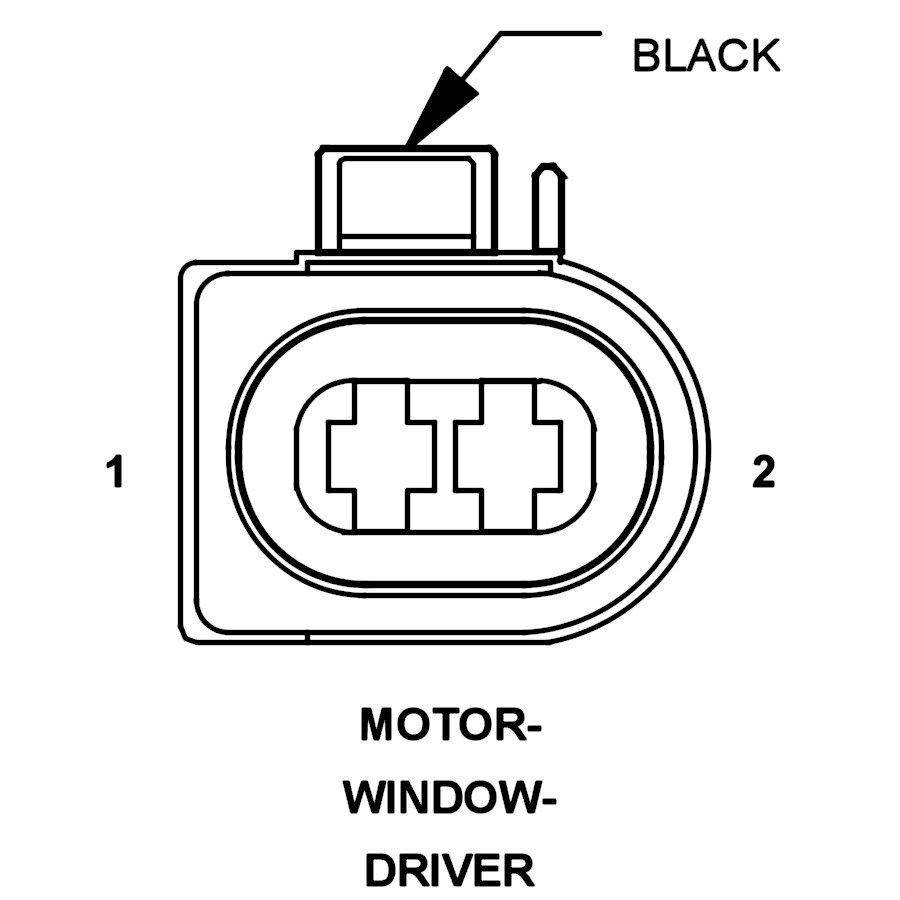

Component : MOTOR-WINDOW-DRIVER

Connector:
Name : MOTOR-WINDOW-DRIVER
Color : BLACK
# of pins : 2




Pin Description Circuit
1 DRIVER WINDOW DRIVER (UP) 16 12BK
2 DRIVER WINDOW DRIVER (DOWN) 15 12DG
