Installation

INSTALLATION

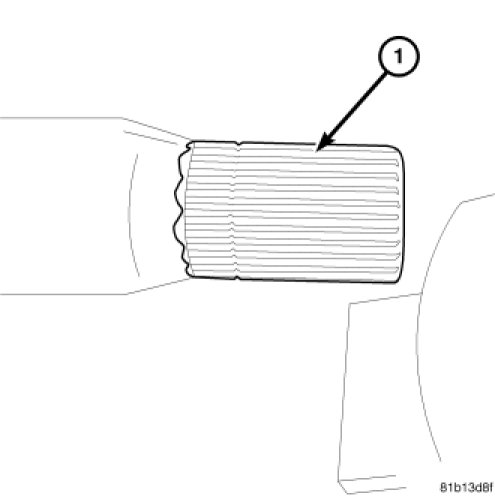

1. Coat axle spline (1) with Mopar Thread Sealant or equivalent.

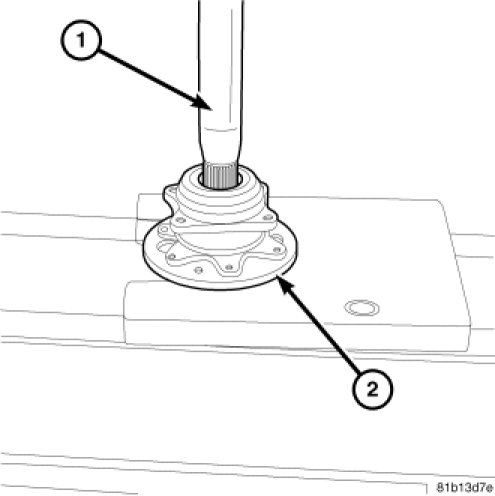

2. Press axle shaft (1) into the bearing and axle flange (2).




3. Install new plug in axle flange.

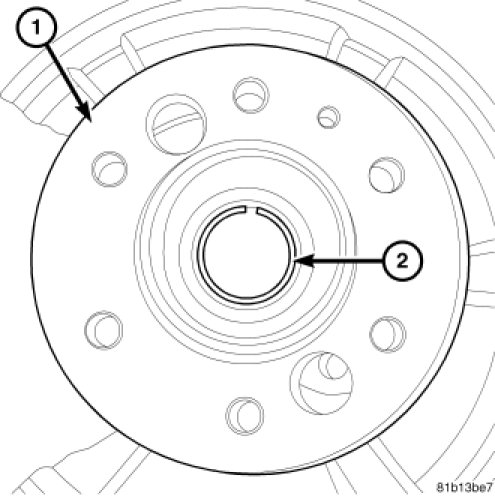

4. Install axle flange plug (1) snap ring (2).

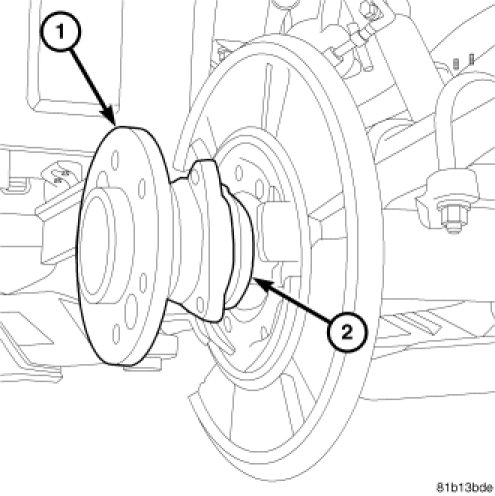

5. Install axle shaft (1) with bearing (2) into the axle.

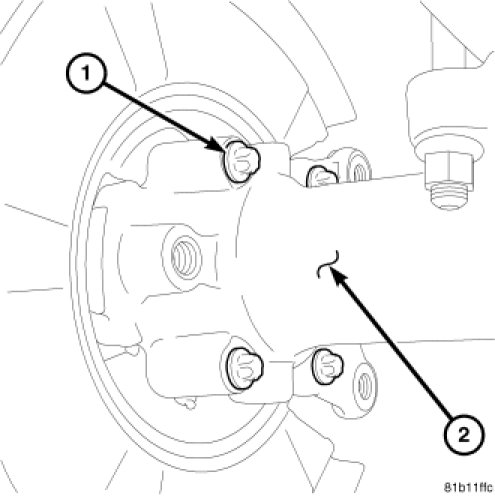

6. Install axle (2) bearing bolts (1).
7. Remove park brakes, rotor and caliper.
8. Fill axle with lubricant to specifications.
