Installation






INSTALLATION

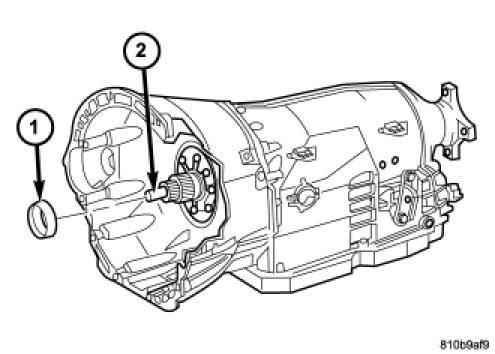

1. Position the torque converter hub seal (1) over the input shaft and against the transmission oil pump.




2. Using Seal Installer 8902A (2), install a new torque converter hub seal.
3. Install the torque converter.
