Removal

REMOVAL





CAUTION: Do not reuse the old power steering pump pulley it is not intended for reuse. A new pulley must be installed if removed.

1. Remove the power steering pump assembly.

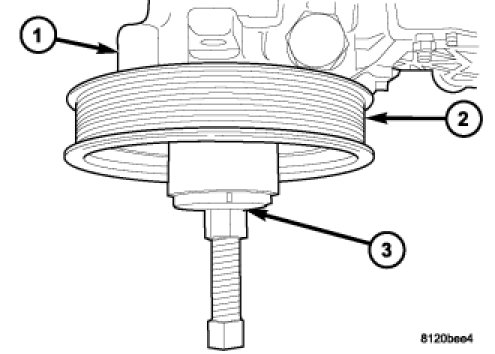

2. Remove the pulley (2) from the pump (1) using (OTC(R) 7185) power steering pulley removal tool (3) or equivalent.
