Home >> Freightliner Truck >> 2007 >> Sprinter 3500 V6-3.0L DSL Turbo >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Suspension >> Rear

Rear






TORQUE CHART

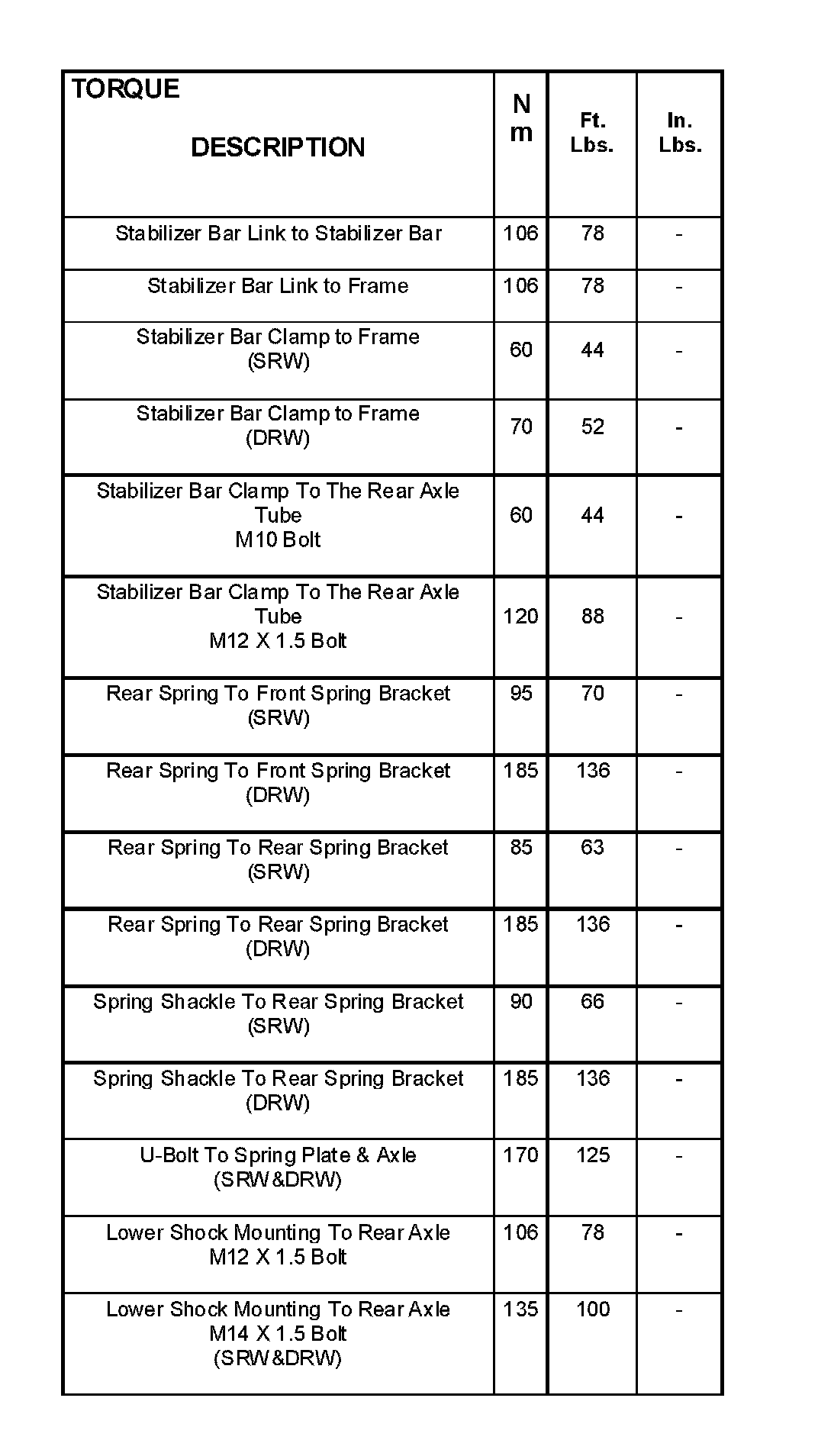

Torque Chart (Part 1):

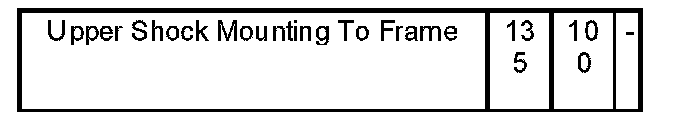

Torque Chart (Part 2):
