Seat Sensor/Switch: Diagrams

Component ID: 549
Component : SWITCH-SEAT BELT-DRIVER

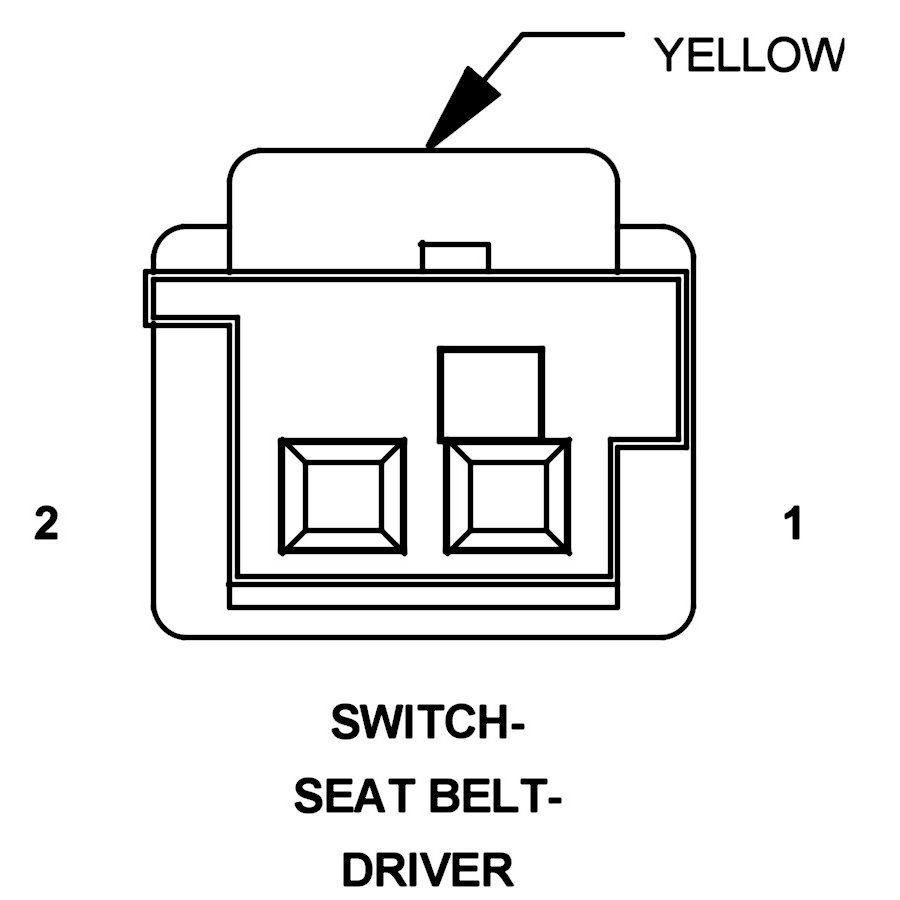

Connector:
Name : SWITCH-SEAT BELT-DRIVER
Color : YELLOW
# of pins : 2




Pin Description Circuit
1 GROUND 342 20DB
2 DRIVER SEAT BELT SWITCH SENSE 343 20YL
