Water In Fuel Sensor: Diagrams

Component ID: 501
Component : SENSOR-WATER IN FUEL

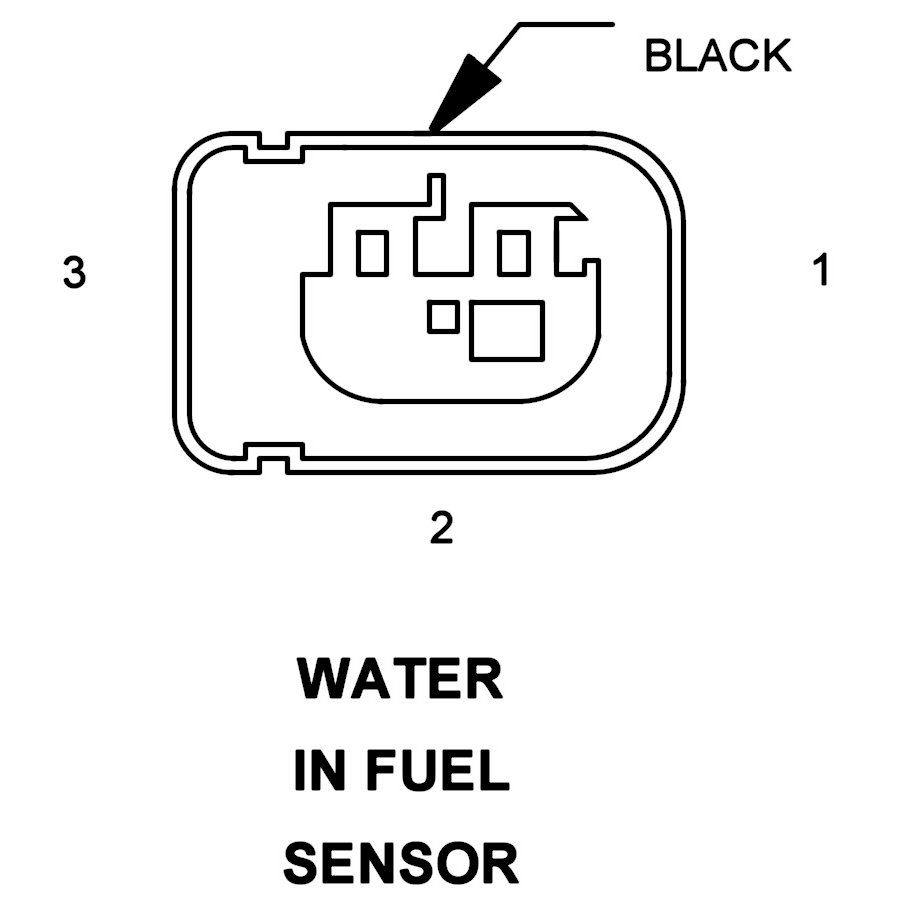

Connector:
Name : SENSOR-WATER IN FUEL
Color : BLACK
# of pins : 3




Pin Description Circuit
1 WATER IN FUEL SENSOR GROUND 2213 18BR/RD
2 WATER IN FUEL SENSOR SIGNAL 3270 18WT/BK
3 FUSED ASD RELAY OUTPUT U364 18BK/WT
