Switch-Roof Lamp-Rear

Component ID: 547

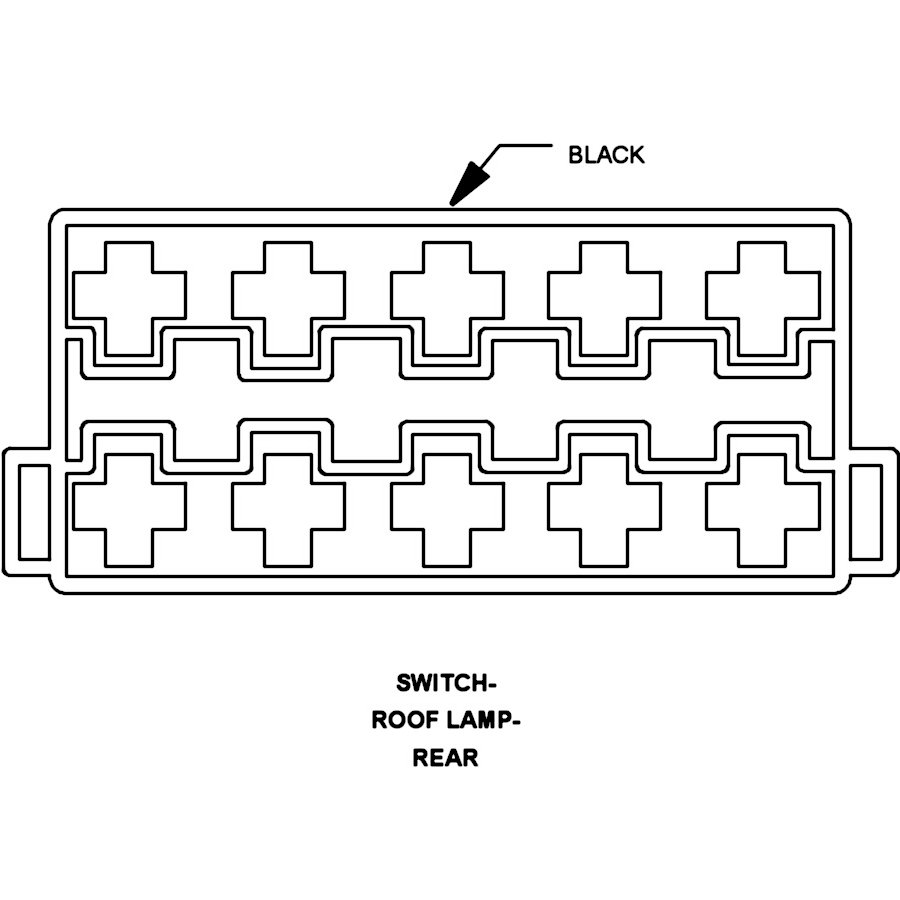

Component : SWITCH-ROOF LAMP-REAR

Connector:
Name : SWITCH-ROOF LAMP-REAR
Color : BLACK
# of pins : 10




Pin Description Circuit
1 - U815 18GY/DB
2 - -
3 - -
4 - 3168 18VT/DG
4 - 3434 18VT/DG
5 - 3434 18VT/DG
6 - 3165 16RD/GY
7 - 3166 18VT/DB
8 - -
9 - -
10 GROUND 3139 18BR
