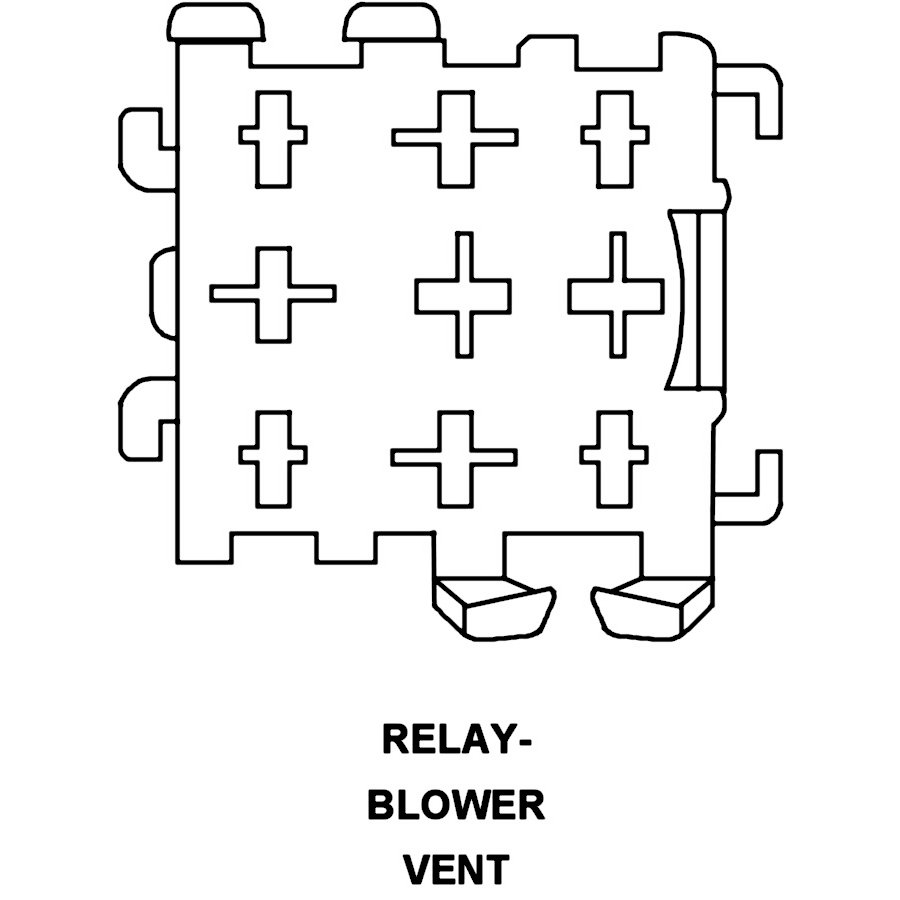

Relay-Blower Vent


Component ID: 311
Component : RELAY-BLOWER VENT

Connector:
Name : RELAY-BLOWER VENT
Color :
# of pins : 8




2 - 2531 10WT
4 - 2411 20YL/DG
6 GROUND 2410 20BR
8 - 2324 10RD
