Installation

INSTALLATION

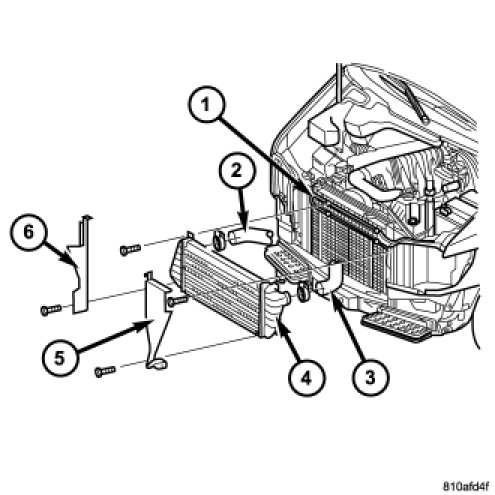

1. Install charge air cooler to radiator.
2. Connect power steering cooler loop to charge air cooler.
3. Connect charge air hoses.
4. Install both radiator trim pieces.
5. Install front grille with front cross member.
6. Install headlamp assemblies.
7. Install front bumper.
