Injector-Fuel 6

Component ID: 211
Component : INJECTOR-FUEL 6

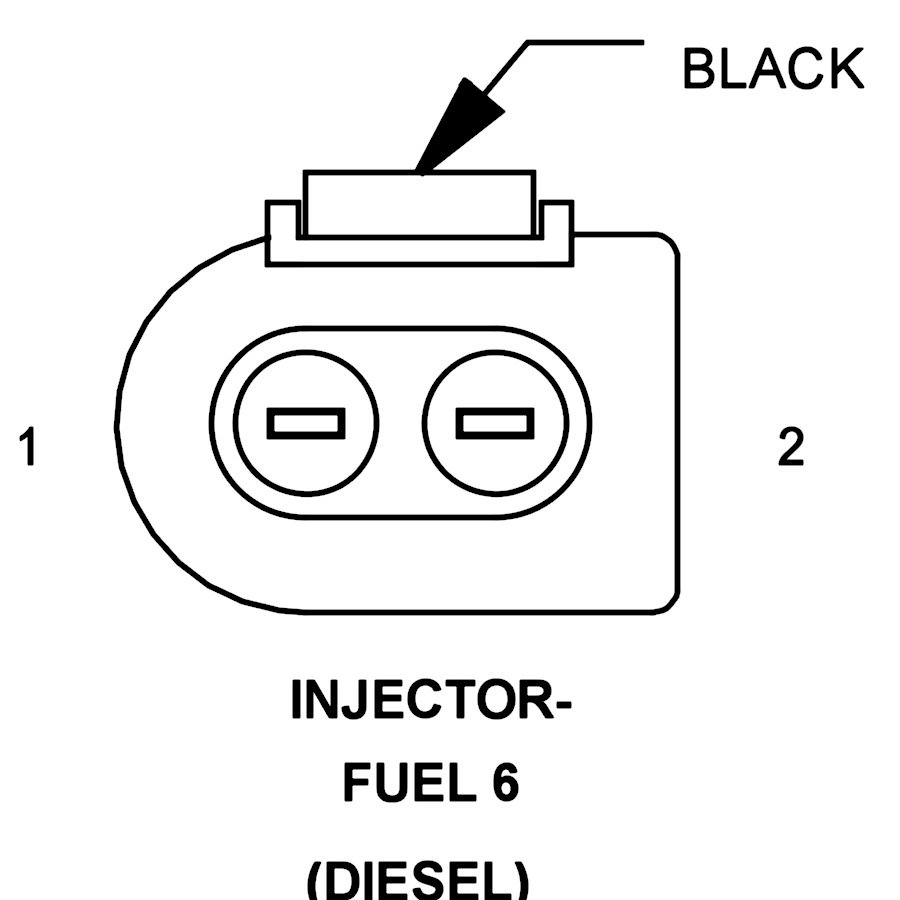

Connector:
Name : INJECTOR-FUEL 6
Color : BLACK
# of pins : 2
Qualifier : (DIESEL)




Pin Description Circuit
1 FUEL INJECTOR 6 LOW-SIDE CONTROL 1345 14DG
2 FUEL INJECTOR 6 HIGH-SIDE CONTROL 1344 14BK/DG

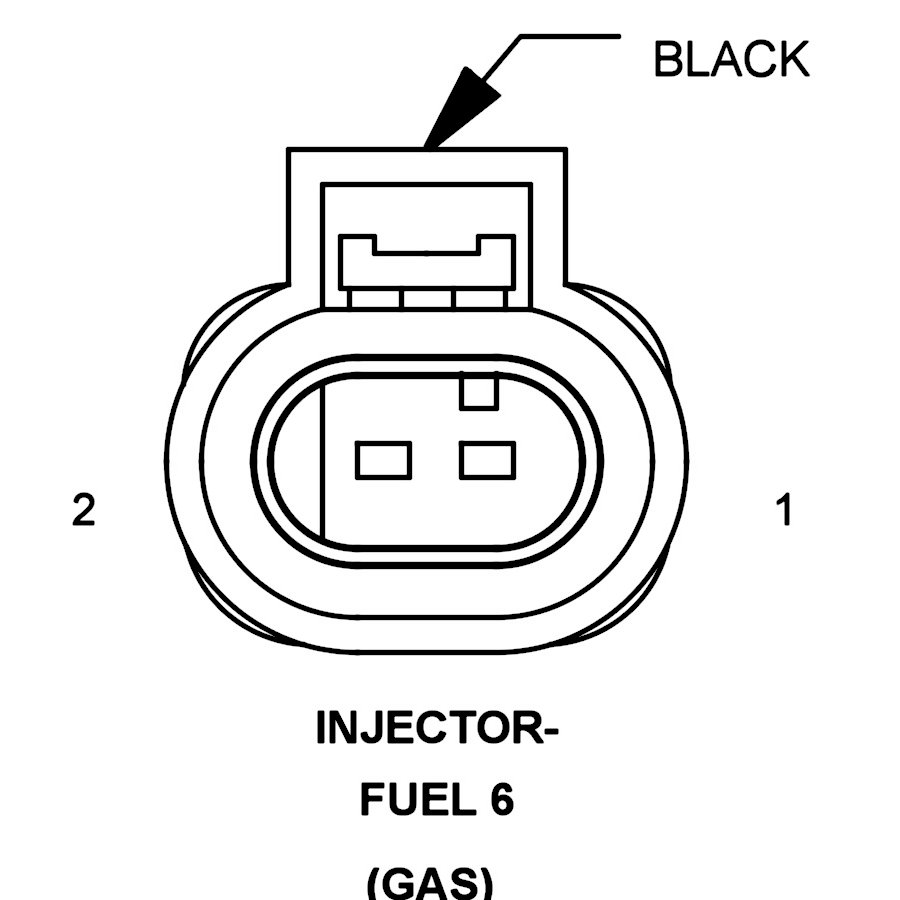

Connector:
Name : INJECTOR-FUEL 6
Color : BLACK
# of pins : 2
Qualifier : (GAS)




Pin Description Circuit
1 FUSED MAIN RELAY OUTPUT U794 18BK/GY
2 INJECTOR 6 CONTROL 1575 18BK/GY
