EGR Wide Open Throttle Valve: Diagrams

Component ID: 559

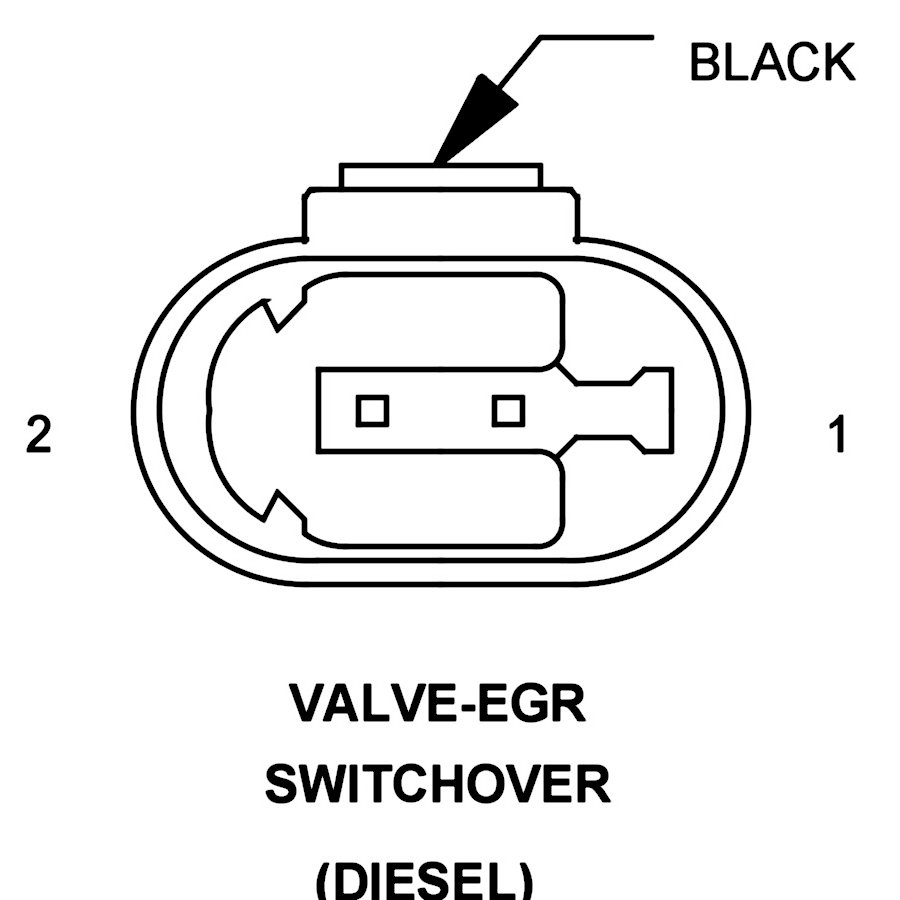

Component : VALVE-EGR SWITCHOVER

Connector:
Name : VALVE-EGR SWITCHOVER
Color : BLACK
# of pins : 2
Qualifier : (DIESEL)




Pin Description Circuit
1 - 3882 18GY/OR
2 - U777 18BK/DG
