Canister Purge Control Valve: Diagrams

Component ID: 564

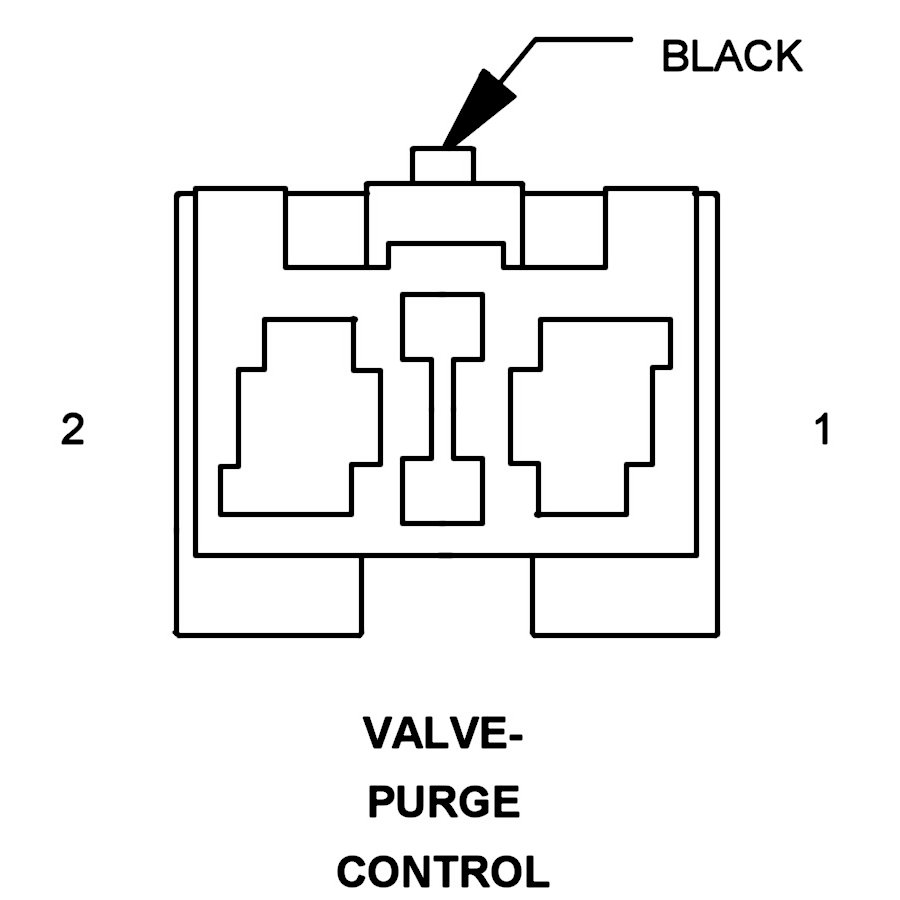

Component : VALVE-PURGE CONTROL

Connector:
Name : VALVE-PURGE CONTROL
Color : BLACK
# of pins : 2




Pin Description Circuit
1 - 1659 18OR
2 - U798 18BK/YL
