Removal

REMOVAL




1. Disconnect and isolate the battery negative cable.

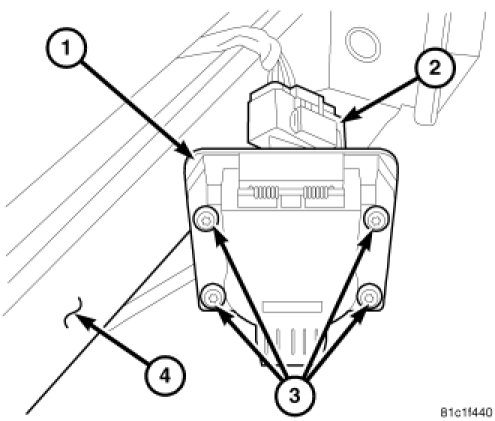

2. Reach behind the connector bracket on the left side of the trailer hitch receiver platform (4) to access and disconnect the connector (2) of the vehicle wire harness from the connector receptacle of the 7-way trailer tow connector (1).
3. Remove the four screws (3) that secure the 7-way trailer tow connector to the bracket.
4. Remove the 7-way trailer tow connector from the bracket.
