Glove Box Lamp: Diagrams

Component ID: 228

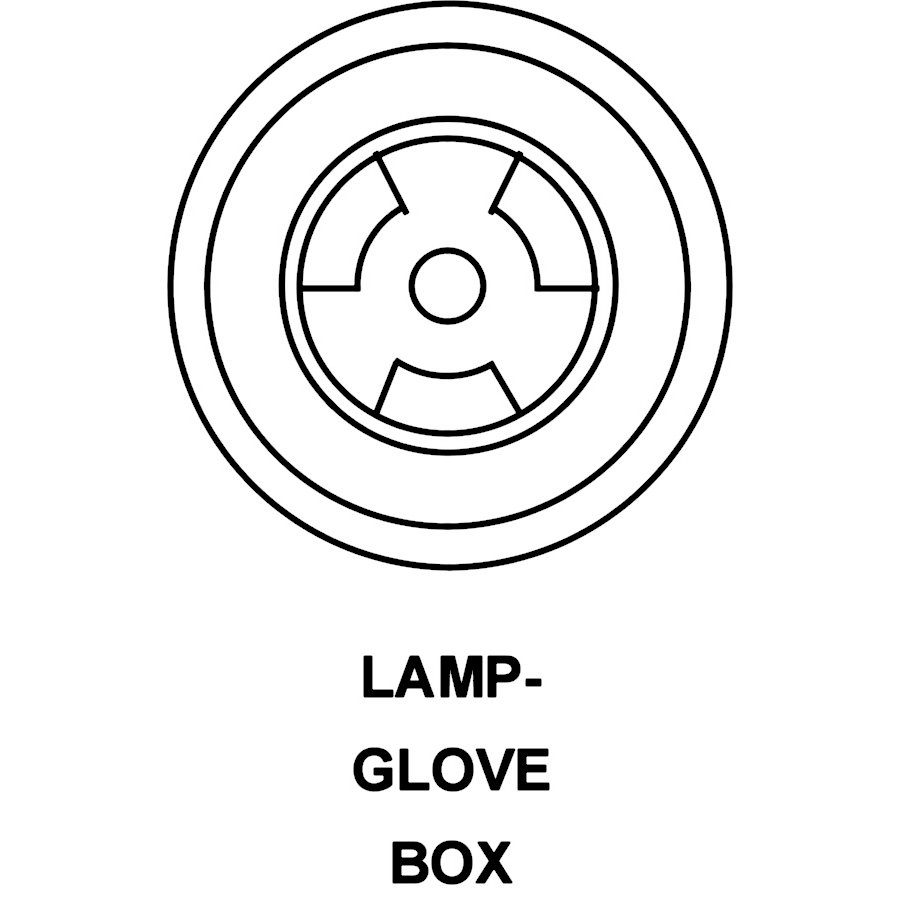

Component : LAMP-GLOVE BOX

Connector:
Name : LAMP-GLOVE BOX
Color :
# of pins : 2
Gender : FEMALE




Pin Description Circuit
1 GROUND 570 14BR
2 - U354 14BK/YL
