Solenoid-Camshaft Position 2/2


Component ID: 511
Component : SOLENOID-CAMSHAFT POSITION 2/2

Connector:

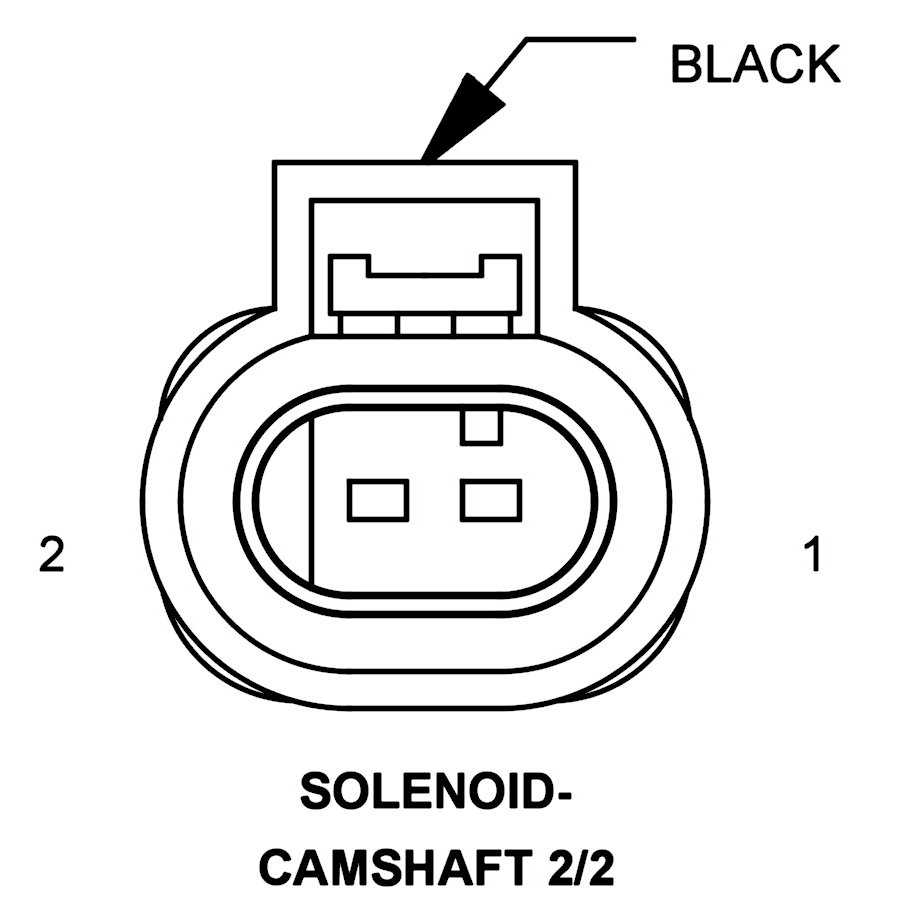

Name : SOLENOID-CAMSHAFT POSITION 2/2
Color : BLACK
# of pins : 2




Pin Description Circuit
1 CMP 2/2 CONTROL 1613 18YL/BK
2 FUSED MAIN RELAY OUTPUT U794 18BK/GY
