1. Clean all mating surfaces.

NOTE: Care must be taken not to get any engine sealer on the camshaft journals.

2. Add a 1.5 mm bead of Mopar(R) Sealant (1) to the cylinder head cover.




3. Place the camshaft seals into position within the cylinder head.
4. Install the cylinder head cover.




5. Tighten the bolts in three stages following the sequence provided. First to 4 Nm (35 in. lbs.), then to 6 Nm (53 in. lbs.), and then to 8.4 Nm (75 in. lbs.).





CAUTION: The fuel injector sealing washers MUST be replaced. DO NOT use the old sealing washers or double the sealing washers.

NOTE: Care must be taken not to apply any lubricant to the fuel injector nozzles.

6. Lubricate the fuel injector bodies and install the fuel injectors (1). Install the injector retaining claws and tighten the bolts to 7 Nm plus 180 �(62 in. lbs. plus 180�).




7. Install the EGR valve (1).

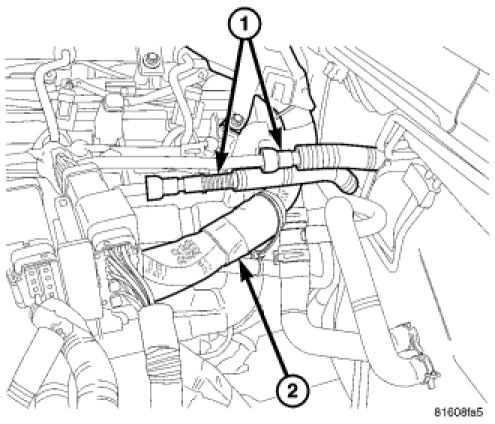

8. Install the engine harness fasteners (2), route the return fuel hose, and injector harness.
9. Install the fuel rail (4) and high pressure lines.
10. Install the left rear engine cover bracket.
11. Connect the injector electrical connectors and return fuel hoses.




12. Install the high pressure fuel line from the high pressure pump to the fuel rail.
13. Install the fuel supply pipe bundle, reclamp at the high pressure pump and fuel filter.
14. Connect the fuel tank supply and return hoses (1) at fuel pipe bundle.




15. Install the engine cover (3) and bracket.
16. Connect the negative battery cable.
17. Start engine, allow to warm, turn engine off and inspect for leaks.
18. Install the strut tower support (2).
