Module-Auxiliary Heater 1

Component ID: 258
Component : MODULE-AUXILIARY HEATER 1

Connector:

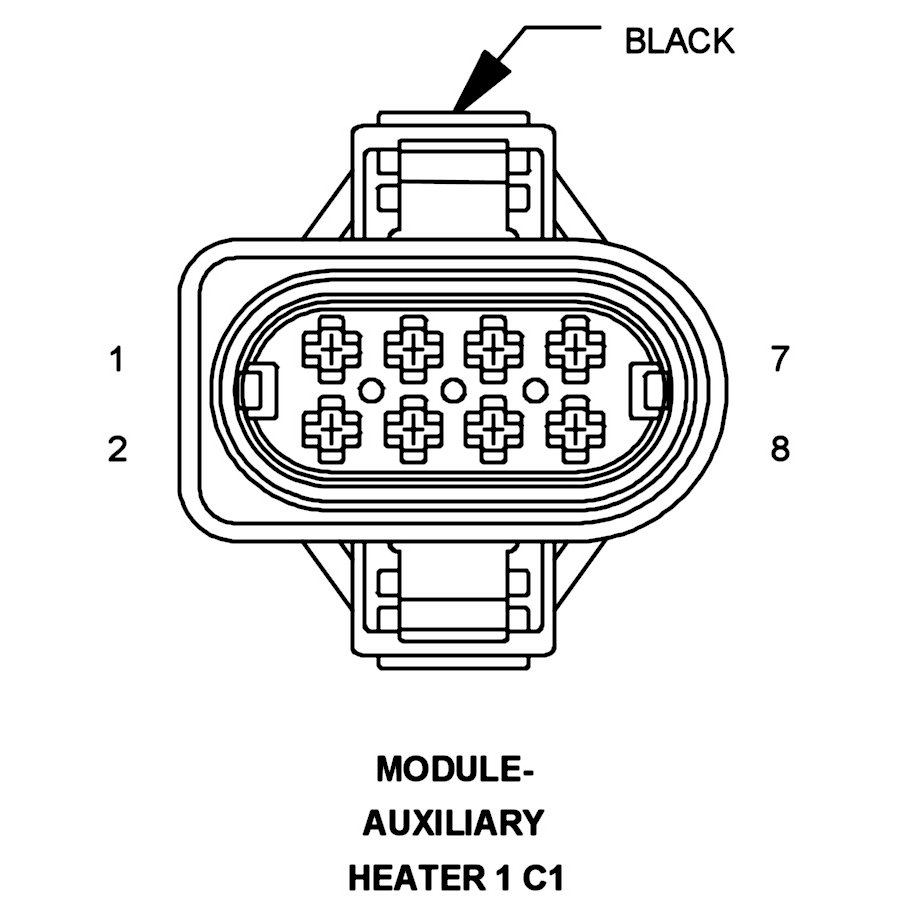

Name : MODULE-AUXILIARY HEATER 1 C1
Color : BLACK
# of pins : 8




Pin Description Circuit
1 TERM.30 2773 12RD/VT
2 GROUND 2772 12BR
3 BLOWER CONTROL SIGNAL-PARKING HEATER -
4 DOSING PUMP-PLUS SUPPLY 2771 16DG/RD
5 CAN B BUS (+) 34 20BR/RD
6 CAN B BUS (-) 35 20BR
7 PLUS ADDITIONAL WATER PUMP -
8 - -



Connector:
Name : MODULE-AUXILIARY HEATER 1 C2
Color :
# of pins : 4




Pin Description Circuit
1 - -
2 SWITCH-LED YELLOW 3838 20OR
3 RADIO FREQUENCY REMOTE CONTROL ON 3838 20OR
4 - -
