Actuator-Recirculation Door-Rear 2

Component ID: 15
Component : ACTUATOR-RECIRCULATION DOOR-REAR 2

Connector:
Name : ACTUATOR-RECIRCULATION DOOR-REAR 2 C1
Color :
# of pins : 10
Gender : FEMALE




Pin Description Circuit
1 - U6112 20BR/YL
2 - 2756 20GY/DB
3 - 2755 20RD/DB
4 - 2760 20DG/VT
5 - 2758 20YL/DB
6 - 2759 20BR/DB
7 - U6112 20BR/YL
8 - 2763 20RD/YL
9 - 2762 20RD/DG
10 - 2761 20BR/DG



Connector:

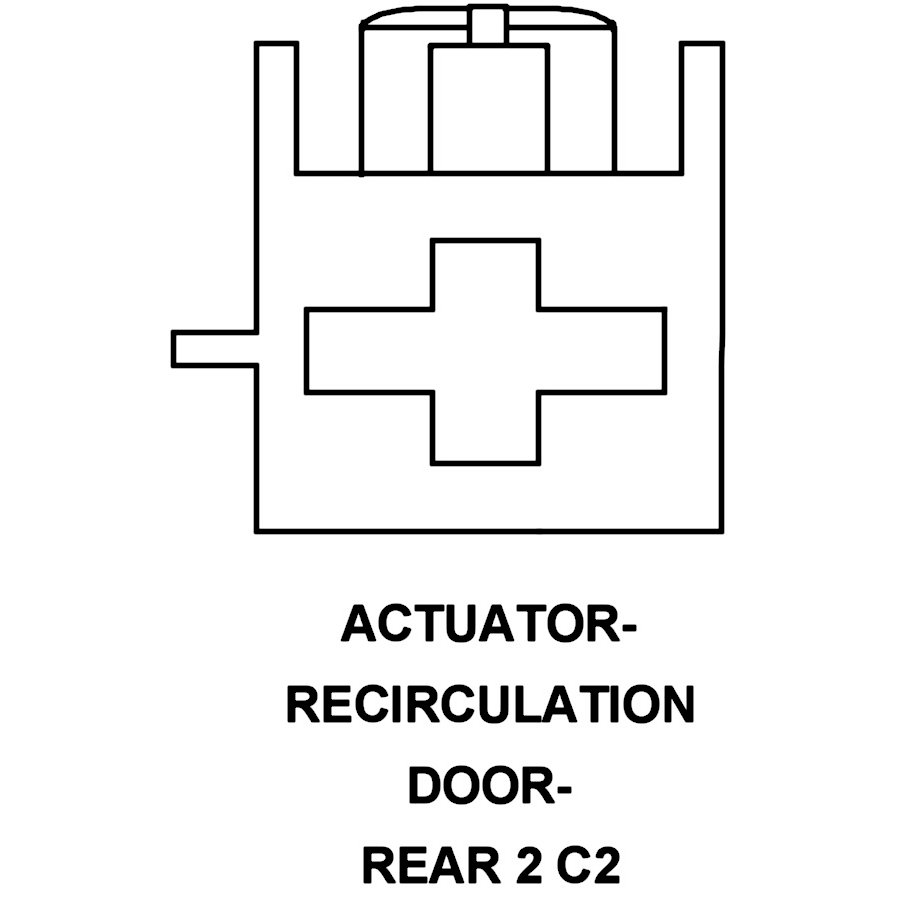

Name : ACTUATOR-RECIRCULATION DOOR-REAR 2 C2
Color :
# of pins : 1
Gender : FEMALE




Pin Description Circuit
1 GROUND 2765 8BR



Connector:

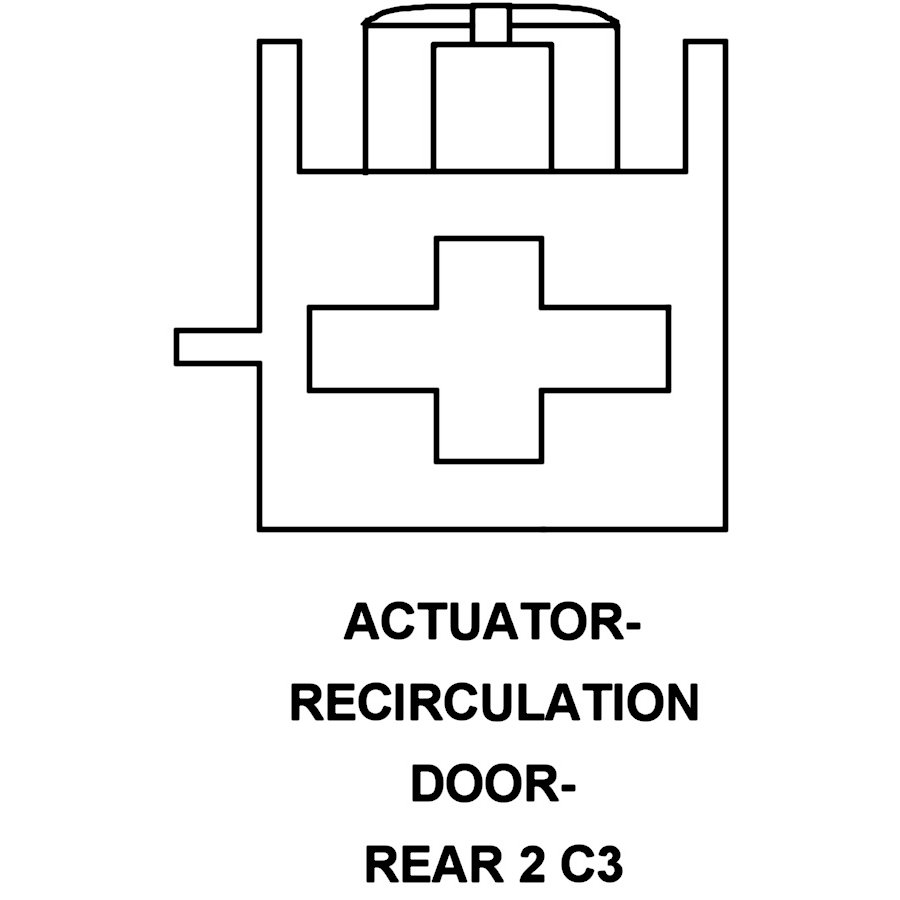

Name : ACTUATOR-RECIRCULATION DOOR-REAR 2 C3
Color :
# of pins : 1
Gender : FEMALE




Pin Description Circuit
1 - 2766 8RD
