Actuator-Blend Door 1-Roof

Component ID: 8

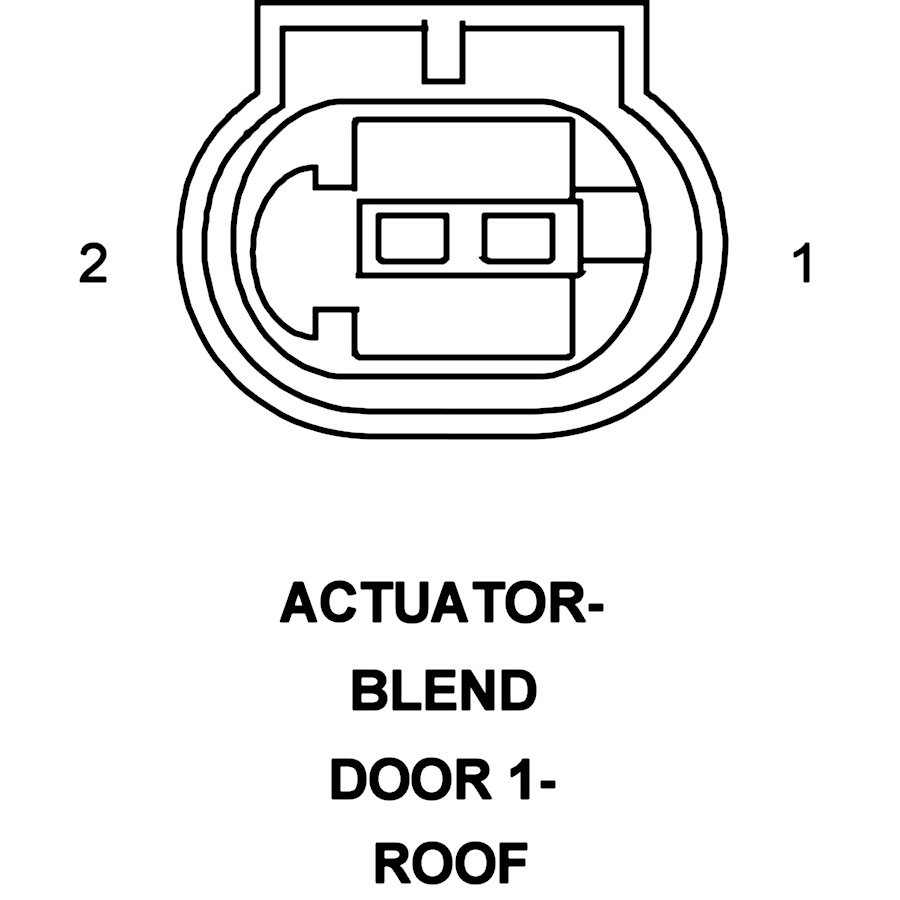

Component : ACTUATOR-BLEND DOOR 1-ROOF

Connector:
Name : ACTUATOR-BLEND DOOR 1-ROOF
Color :
# of pins : 2




Pin Description Circuit
1 - U57 10RD
2 - 3642 10BR
