Speaker-Right Sidewall

Component ID: 520
Component : SPEAKER-RIGHT SIDEWALL

Connector:

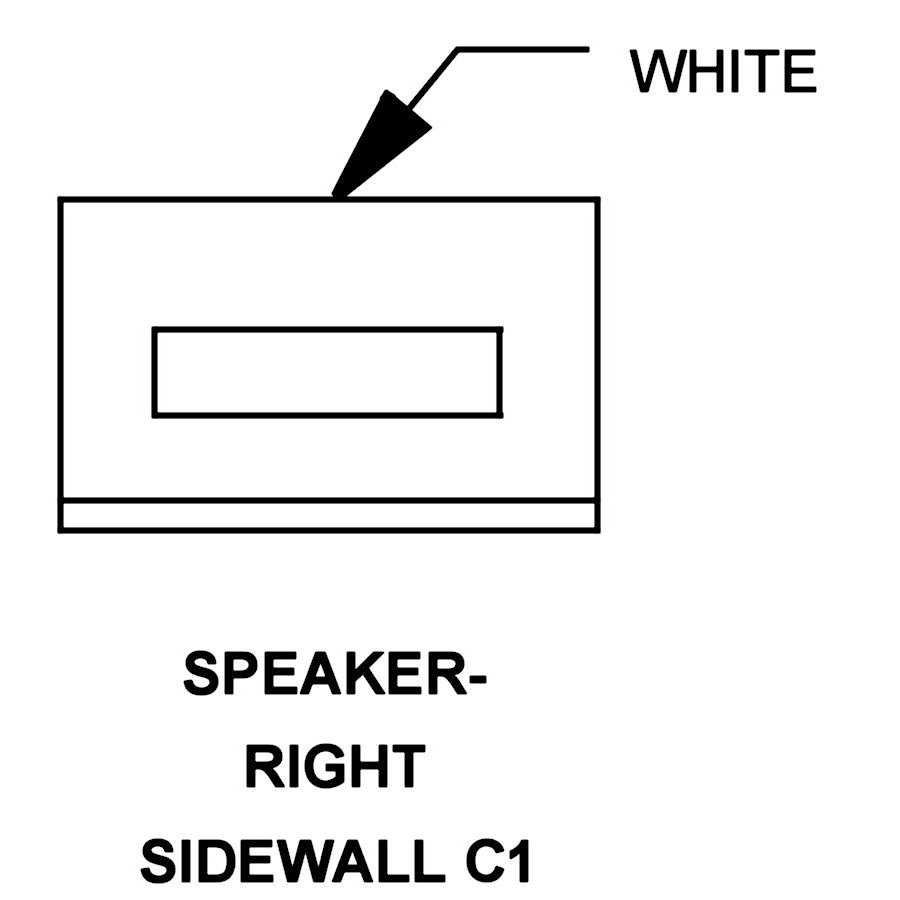

Name : SPEAKER-RIGHT SIDEWALL C1
Color : WHITE
# of pins : 1




Pin Description Circuit
1 - U283 14BR/PK



Connector:
Name : SPEAKER-RIGHT SIDEWALL C2
Color : WHITE
# of pins : 1




Pin Description Circuit
1 - U284 14BR/GY
