Heater-Radio Signal Receiver

Component ID: 197

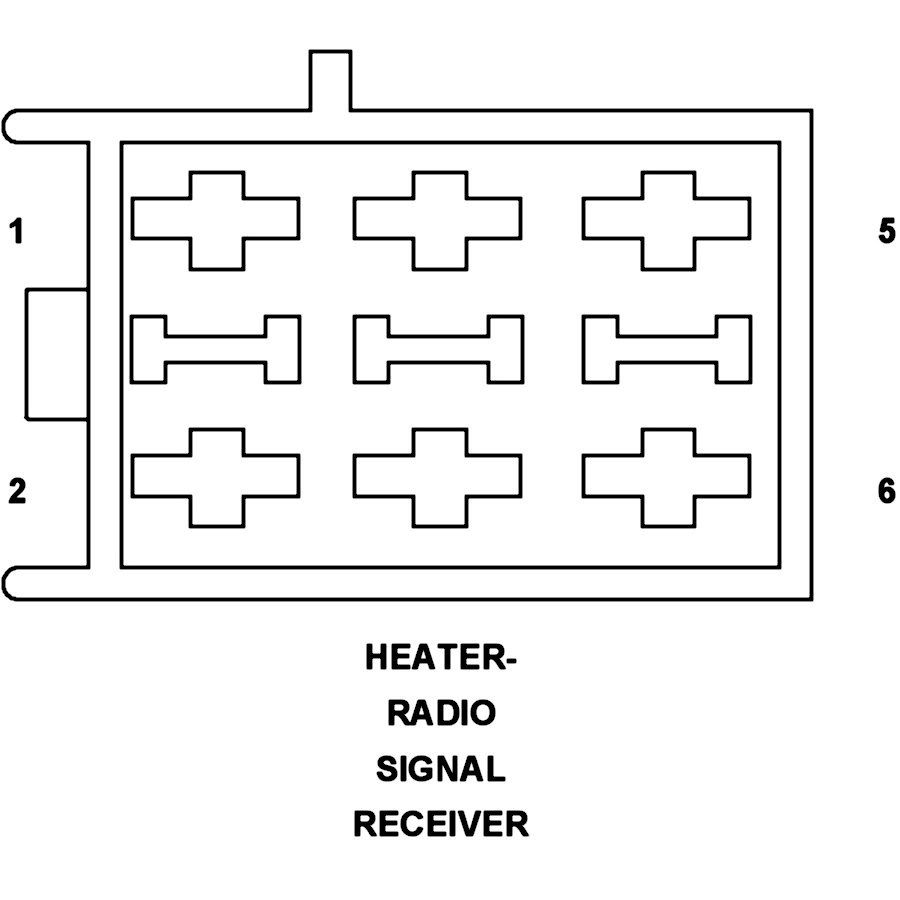

Component : HEATER-RADIO SIGNAL RECEIVER

Connector:
Name : HEATER-RADIO SIGNAL RECEIVER
Color :
# of pins : 6




Pin Description Circuit
1 - -
2 - 2930 20DG
3 RADIO FREQUENCY REMOTE CONTROL ON 2389 20OR/WT
4 GROUND 2388 20BR
5 - -
6 FUSED B(+) 2382 20RD/YL
