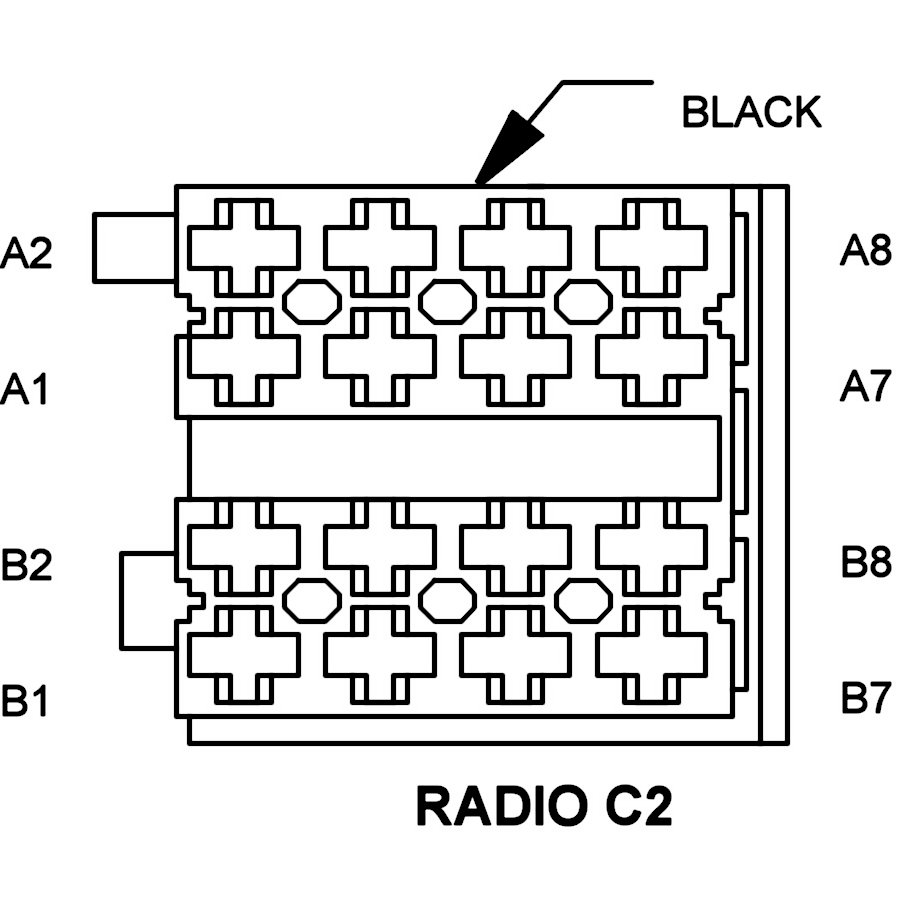

Connector-Radio Preinstallation

Component ID: 109
Component : CONNECTOR-RADIO PREINSTALLATION

Connector:
Name : CONNECTOR-RADIO PREINSTALLATION
Color :
# of pins : 16




A1 - 4377 20DB/RD
A1 - U61 20DB/RD
A2 - -
A3 - -
A4 - 2192 14RD/BK
A5 - 2195 18YL/BK
A5 - 4795 18YL/BK
A6 - U815 18GY/DB
A7 - U354 14BK/YL
A8 - 2193 14BR
B1 - 4364 14BR/PK
B1 - 4760 14BR/PK
B1 - U2882 14BR/PK
B2 - 4759 14BR/GY
B2 - U2883 14BR/GY
B2 - 4365 14BR/GY
B3 - U2870 14BR/OR
B4 - U2871 14BR/DB
B5 - U2868 14BR/VT
B6 - U2869 14BR/DG
B7 - 4366 14BR/RD
B7 - 4756 14BR/RD
B7 - U2880 14BR/RD
B8 - 4755 14BR/WT
B8 - U2881 14BR/WT
B8 - 4367 14BR/WT
