Sensor-Park Assist 10

Component ID: 486

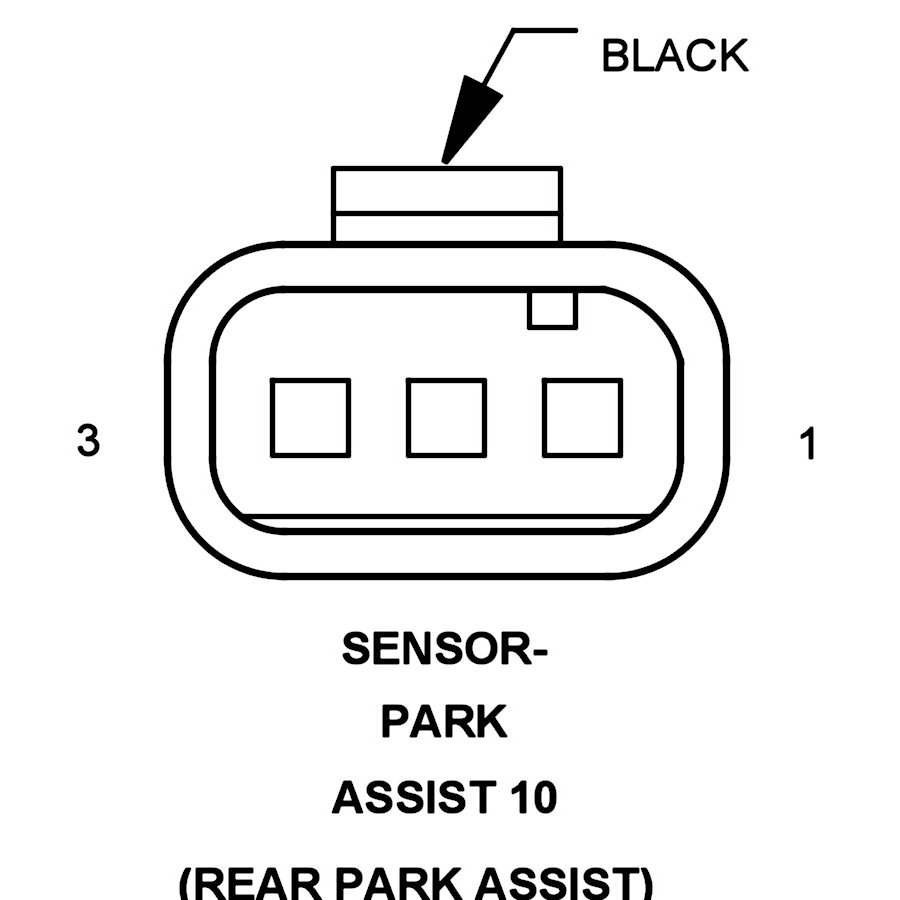

Component : SENSOR-PARK ASSIST 10

Connector:
Name : SENSOR-PARK ASSIST 10
Color : BLACK
# of pins : 3
Qualifier : (REAR PARK ASSIST)




Pin Description Circuit
1 PARK ASSIST SENSOR 10 SIGNAL 618 20DB/YL
2 GROUND U361 20BR/DB
3 PARK ASSIST SENSOR SUPPLY U362 20BK/YL
