Installation

INSTALLATION

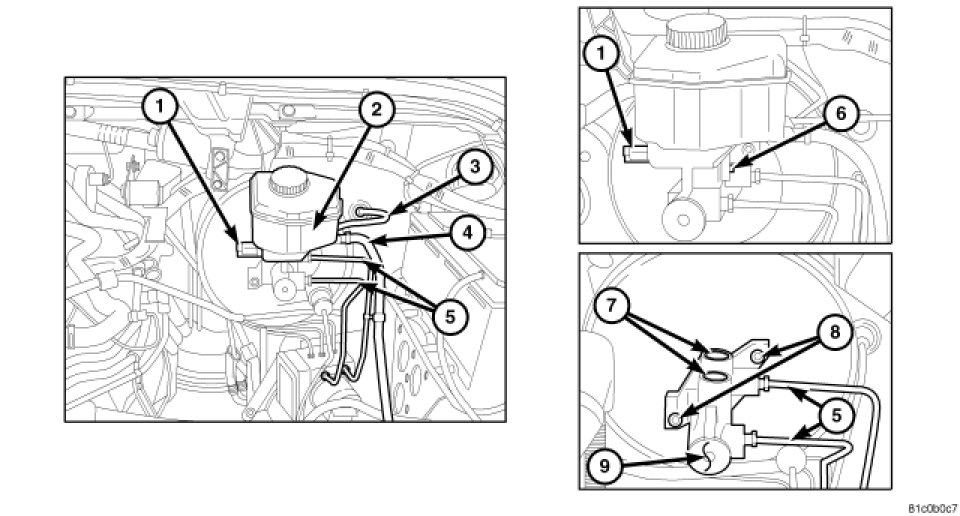

1. Install the fluid reservoir (2) and install new grommets (7) (if removed).
2. Install the master cylinder (9) to the brake booster. Tighten the nuts (8) to 28 Nm (248 in. lbs.).
3. Install the brake lines (5). Tighten to 14 Nm (124 in. lbs.).
4. Install the clutch feed tube (3) (if equipped).
5. Reconnect the brake fluid level switch electrical connector (1).
6. Bleed the brake system.
7. Check the brake system for any leaks.
