Rear Brake Rotor - (Dual Rear Wheels) (DRW)

REAR BRAKE ROTOR - (DUAL REAR WHEELS) (DRW)

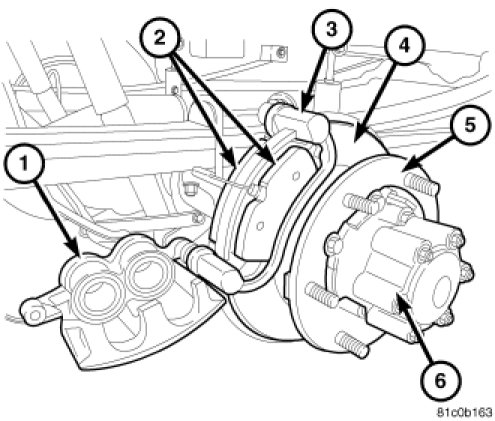

1. Raise and support the vehicle.
2. Remove the rear wheels.
3. Remove the disc brake caliper (1).
4. Remove the rear disc brake pads (2).
5. Remove the disc brake caliper adapter.
6. Apply the parking brake.
7. Remove the wheel flange ring (5).
8. loosen the park brake adjuster to allow clearance for the rotor removal.
9. Remove the rear disc brake rotor (4).
