Front Brake Rotor - Dual Rear Wheel (DRW)

FRONT BRAKE ROTOR - DUAL REAR WHEEL (DRW)




1. Raise and support the vehicle.
2. Remove the front wheels.
3. Remove the caliper (4).
4. Remove the brake pads.
5. Remove the caliper adapter.

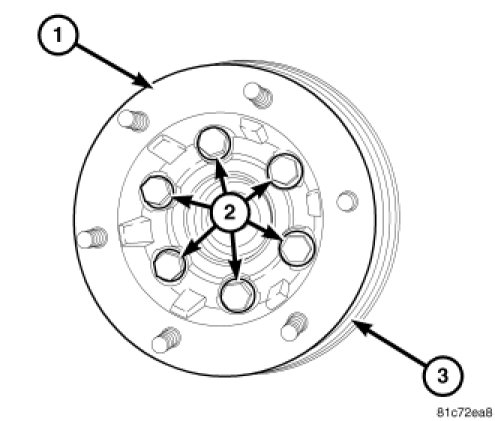

6. Remove the bolts (2) for the wheel flange ring (1).
7. Remove the disc brake rotor (3).
