Installation

INSTALLATION

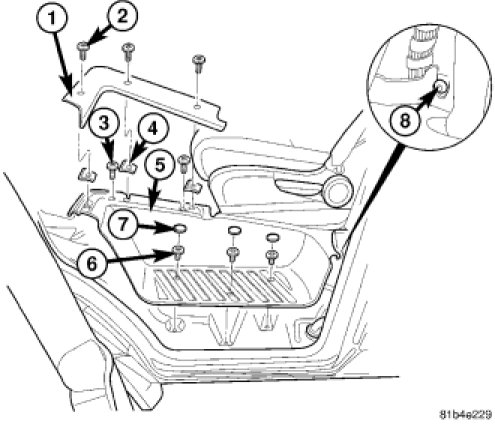

Front




1. Slightly lift B-pillar trim and install the door sill trim (5).
2. Tighten the screw (8) on the B-pillar trim.
3. Install the screws (3, 6) for the door sill trim (5).
4. Install the plugs (7) and seat fully.
5. Install the cover strip (1) and install the screws (2).

Rear




1. Install the rear door sill trim.
2. Install the guide pin (5) and striker (6) and install the bolts (2, 3).
3. Tighten the bolts (2, 3) to 20 Nm (15 ft. lbs.).
4. Install the covers (1) and seat fully.
5. Install the wedges (4) and seat fully.
6. Install the lower D-pillar trim.
