Alarm Horn: Diagrams

Component ID: 506

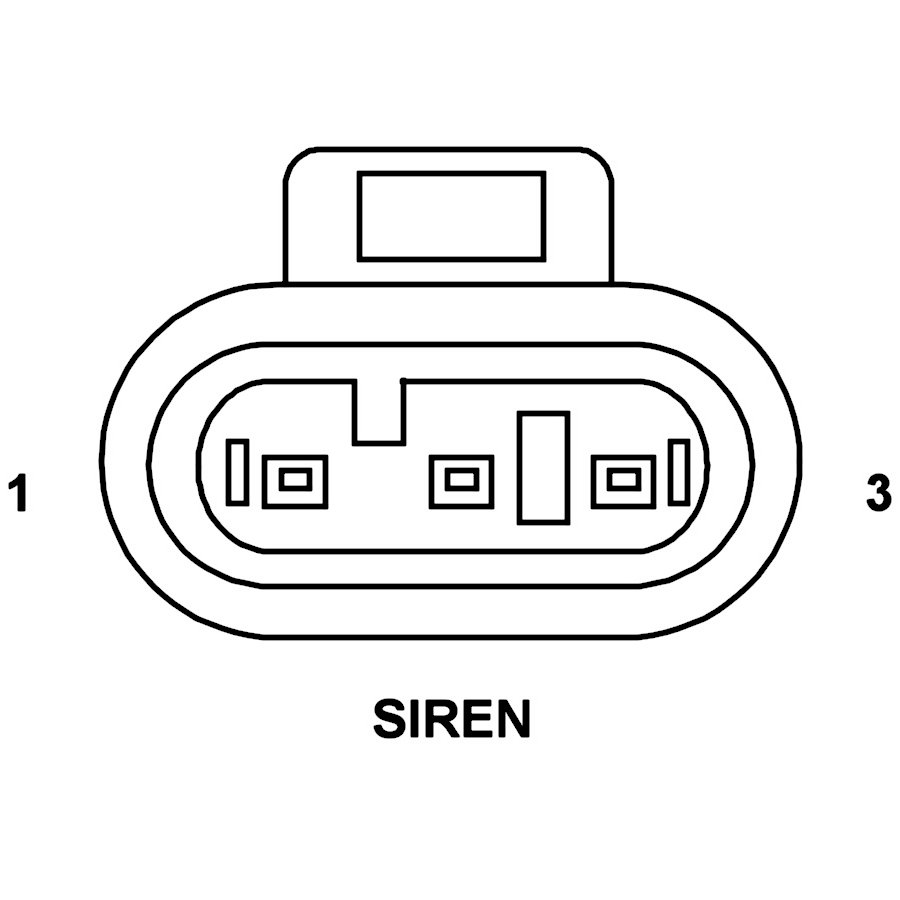

Component : SIREN

Connector:
Name : SIREN
Color :
# of pins : 3




Pin Description Circuit
1 SIREN SIGNAL CONTROL 719 20RD/DG
2 GROUND 718 14BR
3 FUSED B(+) 717 14RD/DB
