P0605

P0605-INTERNAL CONTROL MODULE ROM





For a complete wiring diagram Refer to Diagrams/Electrical Electrical Diagrams


Theory of Operation


The Transmission Control Module (TCM) performs various internal tests to verify proper controller operation. If the TCM detects an error with the controllers Read Only Memory (ROM), the controller will enter Limp-in mode and illuminate the MIL.


- When Monitored:

Continuously with the ignition on.

- Set Condition:

If the TCM detects an error with the controllers Read Only Memory (ROM).







Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. Initial Inspection and Diagnostic Overview


Diagnostic Test

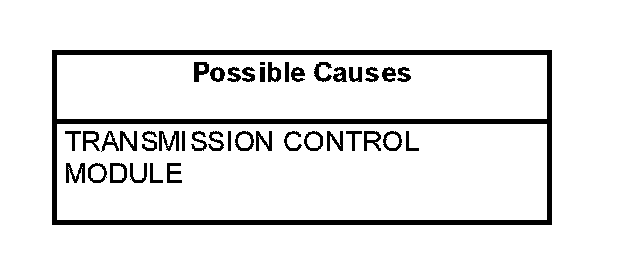

1. TRANSMISSION CONTROL MODULE

View repair

Repair

- Using the schematics as a guide, check the Transmission Control Module (TCM) pins, terminals, and connectors for corrosion, damage, or terminal push out. Pay particular attention to all power and ground circuits. If no problems are found, replace and program the TCM.
- Perform NAG1 TRANSMISSION VERIFICATION TEST. Verification Tests
