9000 - 9999: 9325

9325-MULTIFUNCTION SWITCH SENSE CIRCUIT LOW

For a complete wiring diagram Refer to Diagrams/Electrical Electrical Diagrams


- When Monitored:

With the ignition on.

- Set Condition:

The Steering Control Module (SCM) will set this code when all pushbuttons of the Right Multifunction Steering Wheel Group and the Left Multifunction Steering Wheel Group as well as the pushbuttons for the Horns are not operating.








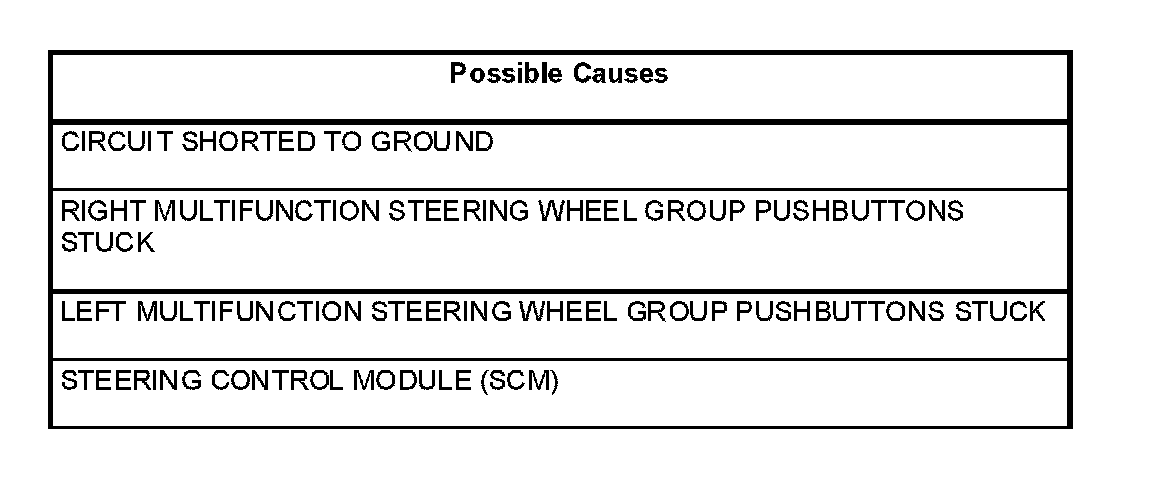

Diagnostic Test


1. INTERMITTENT CONDITION

Turn the ignition on.

With the scan tool, clear all DTC's.

With the scan tool, read DTC's.

Does the scan tool display this DTC as active?

Yes

- Go To 2

No

- The condition that caused this symptom is currently not present. Check for an intermittent condition by inspecting the related wiring harness for chafed, pierced, pinched, and partially broken wires. Also, inspect the related connectors for broken, bent, pushed out, spread, corroded, or contaminated terminals. Repair as necessary.
- Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test



2. RIGHT MULTIFUNCTION STEERING WHEEL GROUP PUSHBUTTONS STUCK

Turn the ignition off.

Disconnect the Right Multifunction Steering Wheel Group harness connector.

Turn the ignition on.

Wait 30 seconds.

With the scan tool, read the DTC's.

Does the scan tool display this DTC as active?

Yes

- Go To 3

No

- Replace the Right Multifunction Steering Wheel Group.
- Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test



3. LEFT MULTIFUNCTION STEERING WHEEL GROUP PUSHBUTTONS STUCK

Turn the ignition off.

Disconnect the Left Multifunction Steering Wheel Group harness connector.

Turn the ignition on.

Wait 30 seconds.

With the scan tool, read the DTC's.

Does the scan tool display this DTC as active?

Yes

- Go To 4

No

- Replace the Left Multifunction Steering Wheel Group.
- Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test



4. CHECK CIRCUIT FOR A SHORT TO GROUND

Turn the ignition off.

Measure the resistance between ground and the related circuits.

Is the resistance above 10k ohms?

Yes

- Replace the Steering Control Module (SCM).
- Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test

No

- Repair the circuit shorted to ground.
- Perform the BODY VERIFICATION TEST - VER 1. Body Verification Test
