Chime/Buzzer

9085-SELF-DIAGNOSIS FAULT IN LEFT OUTSIDE MIRROR WARNING ELEMENT

For a complete wiring diagram refer to Diagrams/Electrical.

- When Monitored:

With the ignition on.

- Set Condition:

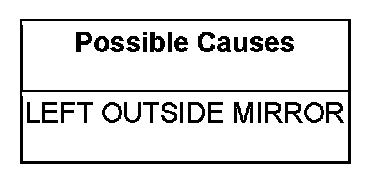

The Park Assist Module detects a failure in the Left Outside Mirror.






Diagnostic Test

1. CHECK FOR ACTIVE DTC

Turn the ignition on.

With the scan tool, read DTCs.

Is the DTC active?

Yes

- Replace the Left Outside Mirror.
- Perform the BODY VERIFICATION TEST - VER 1. Verification Tests

No

- Test complete.
