Chime/Buzzer

9081/9083-SELF-DIAGNOSIS FAULT IN CENTER FRONT PTS WARNING ELEMENT

For a complete wiring diagram refer to Diagrams/Electrical.

- When Monitored:

With the ignition on.

- Set Condition:

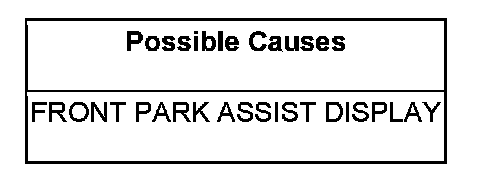

The Park Assist Module detects a failure in the Front Park Assist Display.






Diagnostic Test

1. CHECK FOR ACTIVE DTC

Turn the ignition on.

With the scan tool, read DTCs.

Is the DTC active?

Yes

- Replace the Front Park Assist Display.
- Perform the BODY VERIFICATION TEST - VER 1. Verification Tests

No

- Test complete.
