With EIS (CGW)

9040 LOST COMMUNICATION WITH EIS (CGW)





For a complete wiring diagram Refer to Diagrams/Electrical Electrical Diagrams


- When Monitored:

Ignition on.

- Set Condition:

The TPM Module loses communication over the CAN Bus circuit. The circuit is continuously monitored.







Always perform the Engine Pre-Diagnostic Troubleshooting procedure before proceeding. Testing and Inspection

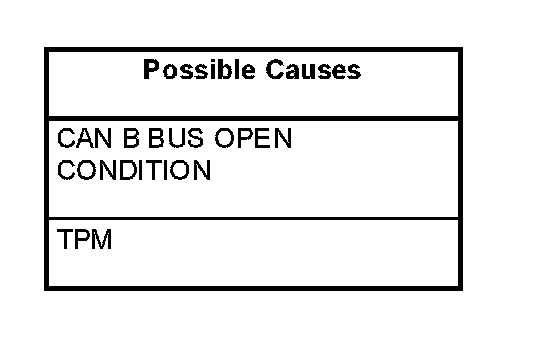

Refer to Manufacturer Trouble Codes for diagnostic procedures and for further possible causes.



Diagnostic Test


1. ACTIVE DTC


NOTE: Review the vehicle repair history. If the Electronic Ignition Switch/Central Gateway Module has been replaced, ensure the that it has been programmed correctly.

Ignition on, engine not running.

With a scan tool, read DTCs.

Is the DTC active at this time?

Yes

- Go To 3

No

- Go To 2



2. INTERMITTENT CONDITION

NOTE: Check for any of the follow conditions:
- Poor wire to terminal connection
- Corroded terminals
- Backed out or loose terminals
- Broken wire internal to the insulation
- Dirty (partial) module ground


Were any of the above condition present?

Yes

- Repair as necessary.
- Perform TPM VERIFICATION TEST. Verification Tests

No

DTC is not active at this time. Test complete.



3. OTHER COMMUNICATION DTC(S)

Using the scan tool, check other CAN B modules.

Are communication DTC(s) present?

Yes

- Refer to Manufacturer Trouble Codes.

No

- Go To 4



4. MEASURE VOLTAGE AT TPM MODULE





Turn the ignition on.

Gain access to the TPM Module harness connector, but do not disconnect.

Backprobe and measure the voltage on both the CAN B Bus (+) and the CAN B (-) circuits.


NOTE: With the BUS active, the voltmeter should read, CAN B Bus (-) 4.65 - 4.98 volts and CAN B Bus (+) 0.39 - 0.46 volts.

Does the voltmeter read the correct voltages?

Yes

- Replace the TPM Module.
- Perform TPM VERIFICATION TEST. Verification Tests

No - CAN B Bus (-)

- Repair the open in the CAN B Bus (-).
- Perform TPM VERIFICATION TEST. Verification Tests

No - CAN B Bus (+)

- Repair the open in the CAN B Bus (+)
- Perform TPM VERIFICATION TEST. Verification Tests
