Chime/Buzzer

9040-PTS INTERNAL (ADC) OR ROM OR EEPROM

For a complete wiring diagram refer to Diagrams/Electrical.

- When Monitored:

With the ignition on.

- Set Condition:

The Park Assist Module detects an internal failure.






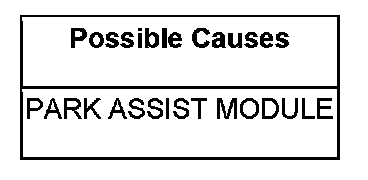

Diagnostic Test

1. CHECK FOR ACTIVE DTC

Turn the ignition on.

With the scan tool, read DTCs.

Is the DTC active?

Yes

- Replace the Park Assist Module.
- Perform the BODY VERIFICATION TEST - VER 1. Verification Tests

No

- Disregard DTC.
