Tire Pressure Monitoring

9030-INCOMPATIBLE MODEL/VARIANT

For a complete wiring diagram Refer to Diagrams/Electrical Electrical Diagrams


- When Monitored:

Ignition on.

- Set Condition:

The TPM Module and the Electronic Ignition Switch/Central Gateway Module are not compatible based on software configuration. The circuit is continuously monitored.







Always perform the Engine Pre-Diagnostic Troubleshooting procedure before proceeding. Testing and Inspection

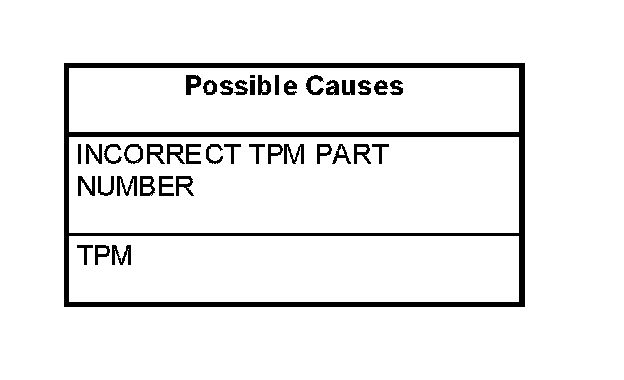

Refer to Manufacturers Trouble Codes for diagnostic procedures and for further possible causes.



Diagnostic Test


1. ACTIVE DTC


NOTE: Review the vehicle repair history. If the Electronic Ignition Switch/Central Gateway Module has been replaced, ensure the that it has been programmed correctly. Repair as necessary.

Review the part number on the TPM Module and ensure the correct one was installed.

Was the correct part installed?

Yes

- Go To 2

No

- Replace and program the TPM Module.
- Perform TPM VERIFICATION TEST. Verification Tests



2. INTERMITTENT CONDITION

NOTE: Check for any of the follow conditions:
- Poor wire to terminal connection
- Corroded terminals
- Backed out or loose terminals
- Broken wire internal to the insulation
- Dirty (partial) module ground


Were any of the above condition present?

Yes

- Repair as necessary.
- Perform TPM VERIFICATION TEST. Verification Tests

No

DTC is not active at this time. Test complete.
