Heated Seats

9000-SWITCH BANK MODULE INTERNAL - SBM

For a complete wiring diagram refer to Diagrams/Electrical.

- When Monitored:

With the ignition on.

- Set Condition:

The Switch Bank Module detects an internal failure






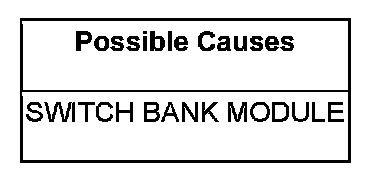

Diagnostic Test

1. CHECK FOR ACTIVE DTC

Turn the ignition on.

With the scan tool, read DTCs.

Is the DTC active?

Yes

- Replace the Switch Bank Module.
- Perform the BODY VERIFICATION TEST - VER 1. Verification Tests

No

- Test complete.
