Communications

9000-PROGRAMMABLE SPECIAL MODULE (PSM) INTERNAL

For a complete wiring diagram refer to Diagrams/Electrical.

- When Monitored:

Continuously.

- Set Condition:

The Programmable Special Module (PSM) detects an internal failure.

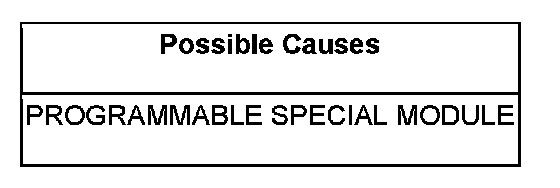

Diagnostic Test

1. PROGRAMMABLE SPECIAL MODULE (PSM)

The Programmable Special Module (PSM) is reporting internal errors.

View repair.

Repair

- Replace the Programmable Special Module (PSM).
- Perform BODY VERIFICATION TEST - VER 1. Verification Tests
