D6A1

D6A1-BLUE TOOTH ANTENNA CIRCUIT LOW

For a complete wiring diagram refer to Diagrams/Electrical.

- When Monitored:

With the ignition on

- Set Condition:

The Hands Free Module detects a short to ground on the Blue Tooth Antenna circuits.






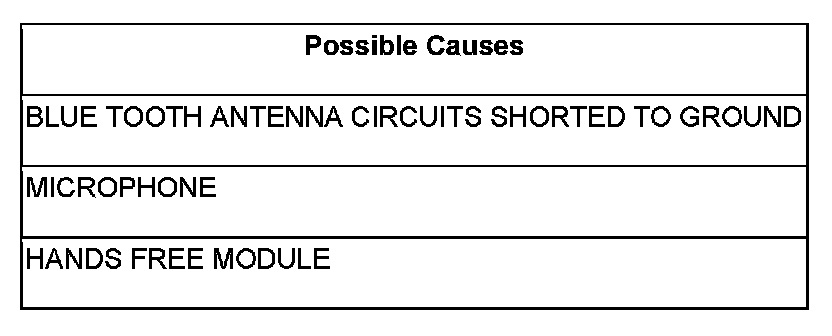

Diagnostic Test

1. CHECK FOR ACTIVE DTC

Turn the ignition on.

With the scan tool, read DTCs.

Is the DTC active?

Yes

- Go To 2

No

- The condition that caused this code to set is not present at this time. Check for an intermittent condition by inspecting the related wiring harness for chaffed, pierced, pinched, and partially broken wires. Also inspect the related connectors for broken, bent, pushed out, spread, corroded, or contaminated terminals.


2. ANTENNA

Turn the ignition off.

Disconnect the Antenna harness connector.

Turn the ignition on.

With the scan tool, read DTCs.

Is the DTC active?

Yes

- Go To 3

No

- Replace the Antenna.
- Perform the BODY VERIFICATION TEST - VER 1. Verification Tests


3. BLUE TOOTH ANTENNA CIRCUITS SHORTED TO GROUND

Turn the ignition off.

Disconnect the Hands Free Module harness connector.

Measure the resistance between ground and the Blue Tooth Antenna circuits.

Is the resistance below 10K ohms?

Yes

- Repair the Blue Tooth Antenna circuits for a short to ground.
- Perform the BODY VERIFICATION TEST - VER 1. Verification Tests

No

- Replace the Hands Free Module.
- Perform the BODY VERIFICATION TEST - VER 1. Verification Tests
