D240






D240-CD/DVD HIGH TEMPERATURE-RADIO

For a complete wiring diagram refer to Diagrams/Electrical.

- When Monitored:

Whenever the module is awake.

- Set Condition:

When the CD/DVD player detects high temperature.

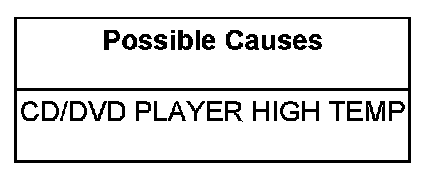

Diagnostic Test

1. CD/DVD PLAYER TEMP HIGH

Turn the ignition on.

With the scan tool, record and erase DTC's.

Turn the CD/DVD player on.

Wait 30 seconds.

With the scan tool, read DTC's.

Does the scan tool display D240-CD/DVD HIGH TEMPERATURE-RADIO?

Yes

- This is a high temp code. The CD/DVD player will shut down automatically at 70° C (158° F). Allow the CD/DVD player to cool to normal operating temperatures before operating the CD/DVD player.
- Perform BODY VERIFICATION TEST - VER 1. Verification Tests

No

- The conditions that caused this code to set are not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
- Perform BODY VERIFICATION TEST - VER 1. Verification Tests
