Message Systems

9009-ROOF CONTROL MODULE INTERNAL

For a complete wiring diagram refer to Diagrams/Electrical.

- When Monitored:

Continuously.

- Set Condition:

The Roof Control Module (RCM) detects an internal failure.






Diagnostic Test

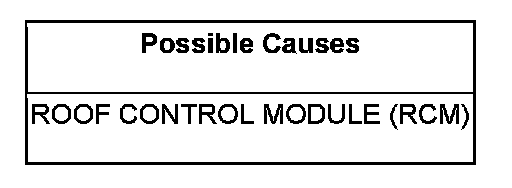

1. ROOF CONTROL MODULE (RCM)

The Roof Control Module (RCM) is reporting internal errors.

View repair.

Repair

- Replace the Roof Control Module (RCM).
- Perform BODY VERIFICATION TEST - VER 1. Verification Tests
