Front Door Window Motor: Service and Repair

Remove/install motor for electric power windows in front door

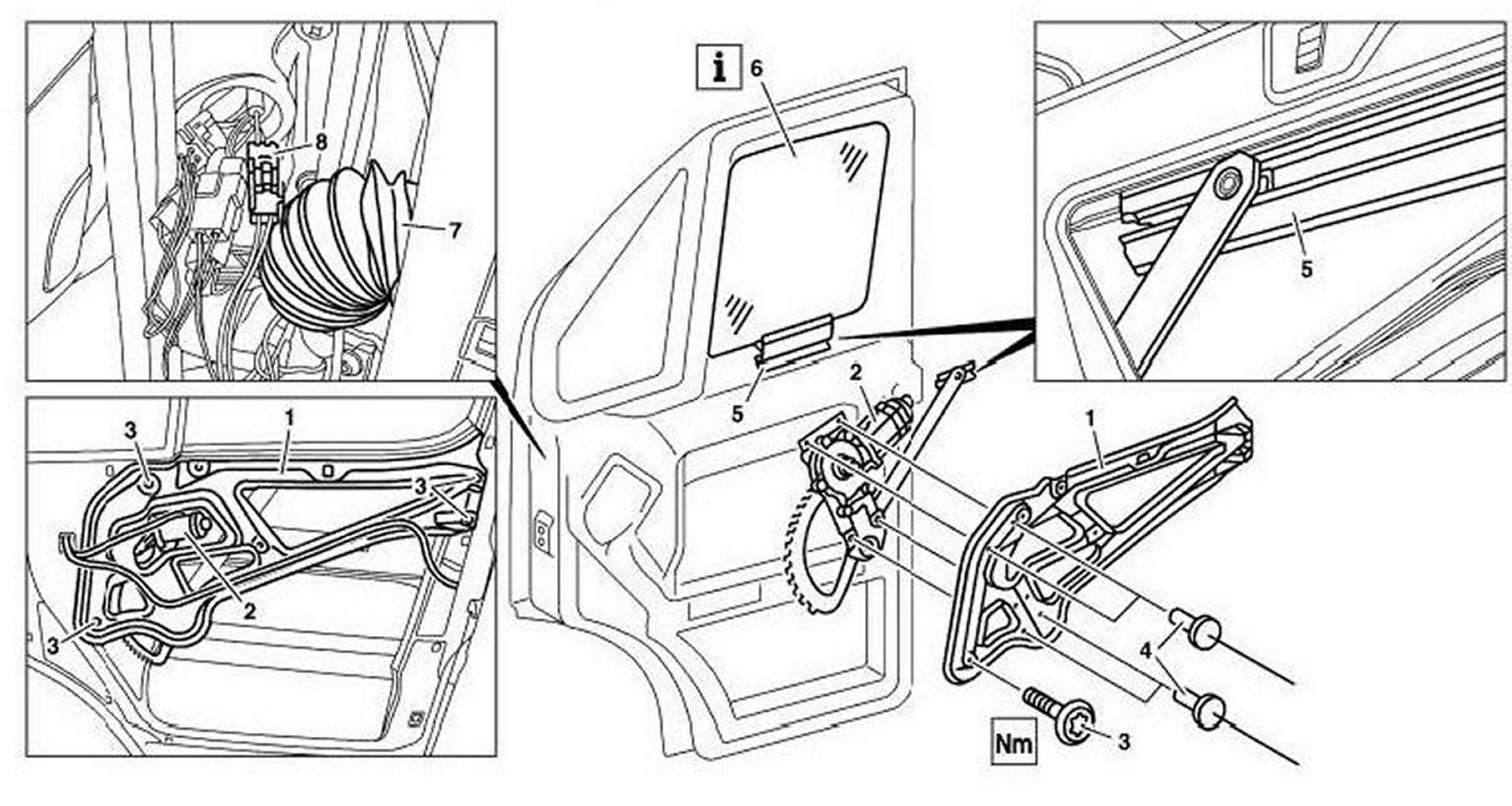

Remove/install Motor For Electric Power Windows In Front Of Door:

1. Carrier plate
2. Motor (power window)
3. Torx bolt
4. Blind rivet
5. Guide rail
6. Window
7. Rubber grommet
8. Connector

Remove/Install

1. Lower front window approx. 2 cm
2. Remove door liner from hinged door
3. Pull rubber grommet (7) out between front door and A-pillar
4. Detach connector (8) Secure connector (8) against falling into front fender.
5. Secure window (6) against falling down with 2nd person
6. Remove carrier plate (1) with power window motor (2) from front door
7. Remove motor linkage (2) out of guide rail (5) on window
8. Drill out blind rivets (4) to motor (2)
9. Remove motor (2) from carrier plate (1).
10. Install in the reverse order
