Power Window Switch: Diagrams

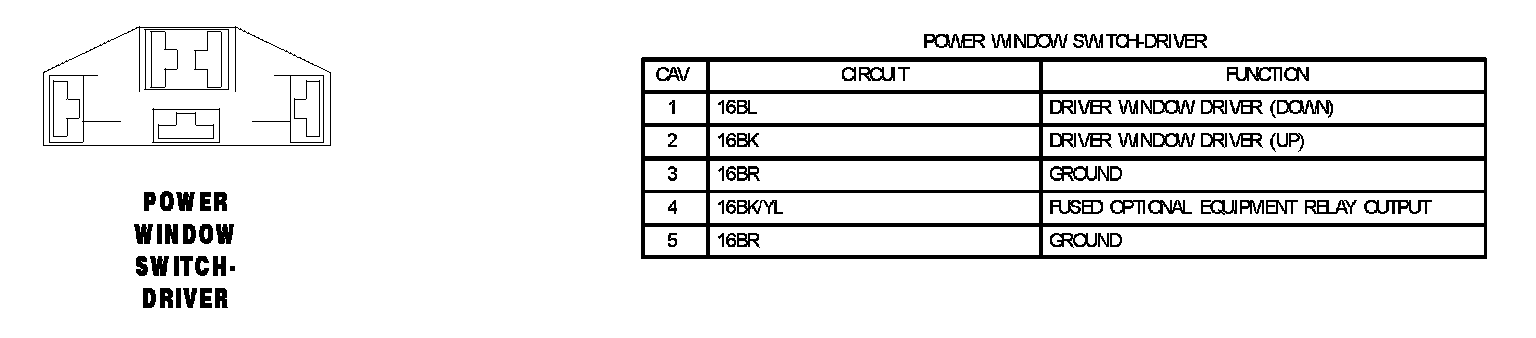

Power Window Switch - Driver:



Power Window Switch - Master:

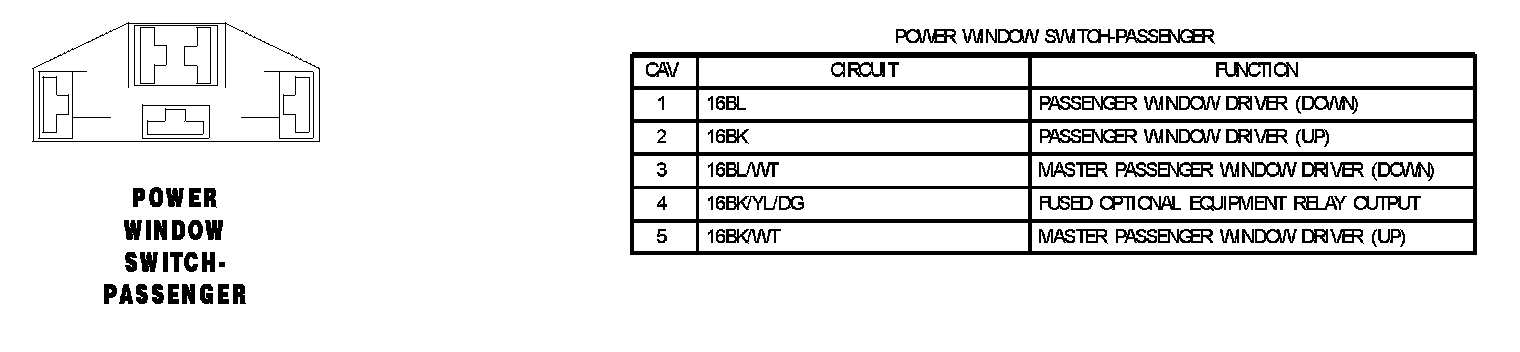

Power Window Switch - Passenger:
